Запчасти Case IH MAGNUM 235 (41.432.AC[01]) - STEERING SYSTEM, MFD WITH AUTOGUIDANCE (41) - STEERING

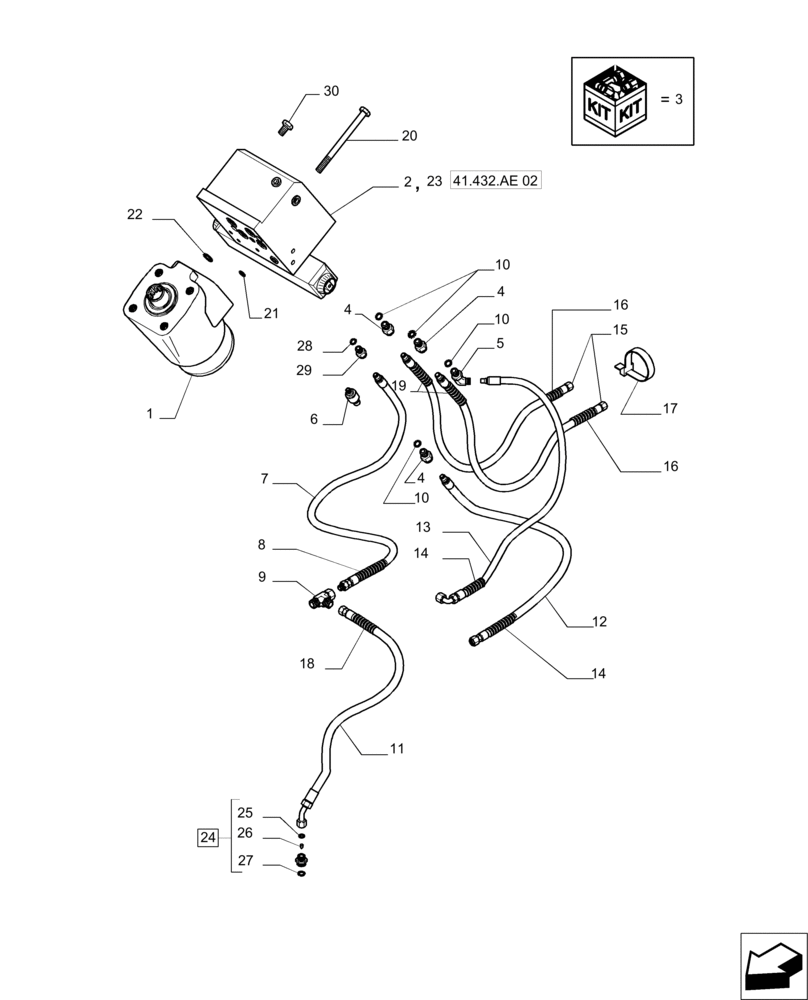

Схема запчастей Case IH MAGNUM 235 - (41.432.AC[01]) - STEERING SYSTEM, MFD WITH AUTOGUIDANCE (41) - STEERING
23
29
4
2
11
3
5
27
41.432.ae 02
9
16
10
10
4
18
14
24
19
20
15
1
7
13
25
10
28
12
16
17
8
26
4
22
21
14
6
30

Артикул

Название

Примечание

Количество

1

84552400

STEERING VALVE

462 cc - CLASSE 5 COM AUTOGUIDANCE / CLASS 5 WITH AUTOGUIDANCE

1шт.

1

87315009

PUMP

293 cc - CLASSE 4 COM AUTOGUIDANCE / CLASS 4 WITH AUTOGUIDANCE

1шт.

2

84392699

VALVE,Control Assembly, Autoguidance

USE COM BOMBA 87545567 - CLASSE 5 COM AUTOGUIDANCE / USE WITH 87545567 PUMP CLASS 5 WITH AUTOGUIDANCE

1шт.

2

87361918

VALVE

USE COM BOMBA 87315009 - CLASSE 4 COM AUTOGUIDANCE / USE WITH 87315009 PUMP - CLASS 4 WITH AUTOGUIDANCE

1шт.

3

87454545

SEAL KIT

1шт.

4

87331075

HYD CONNECTOR,M18 x 1.5 Male ORB x -08 Fem STC

4шт.

5

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

1шт.

6

87428328

PRESSURE SWITCH

1шт.

7

84127336

HOSE,9.53mm ID x 825mm L

1шт.

8

87353382

CONDUIT

1шт.

9

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

87366166

HOSE,9.5mm ID x 793mm L

1шт.

12

84127341

HOSE,12.7mm ID x 700mm L

1шт.

13

84352407

HYDRAULIC HOSE

1шт.

14

87451398

CONDUIT

2шт.

15

87401118

HOSE,9.5mm ID x 1950mm L

2шт.

16

87353384

CONDUIT

2шт.

17

86991007

CABLE TIE,509mm L

2шт.

18

408412A1

CONDUIT

1шт.

19

408411A1

CONDUIT

2шт.

20

864-12120

HEX SOC SCREW,M12 x 120mm, Cl 8.8

2шт.

21

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

22

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

23

84392699

VALVE,Control Assembly, Autoguidance

USE COM BOMBA 87545567 - CLASSE 5 COM AUTOGUIDANCE / USE WITH 87545567 PUMP CLASS 5 WITH AUTOGUIDANCE

1шт.

23

87386344

VALVE

1шт.

USE WITH 87545567 PUMP

1шт.

24

87361919

ORIFICE

Incl 25 - 27

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

133519C1

SCREEN

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

28

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

1шт.

30

9672438

PLUG,7/16" - 20 ORB

1шт.

Выбрано товаров: 34
