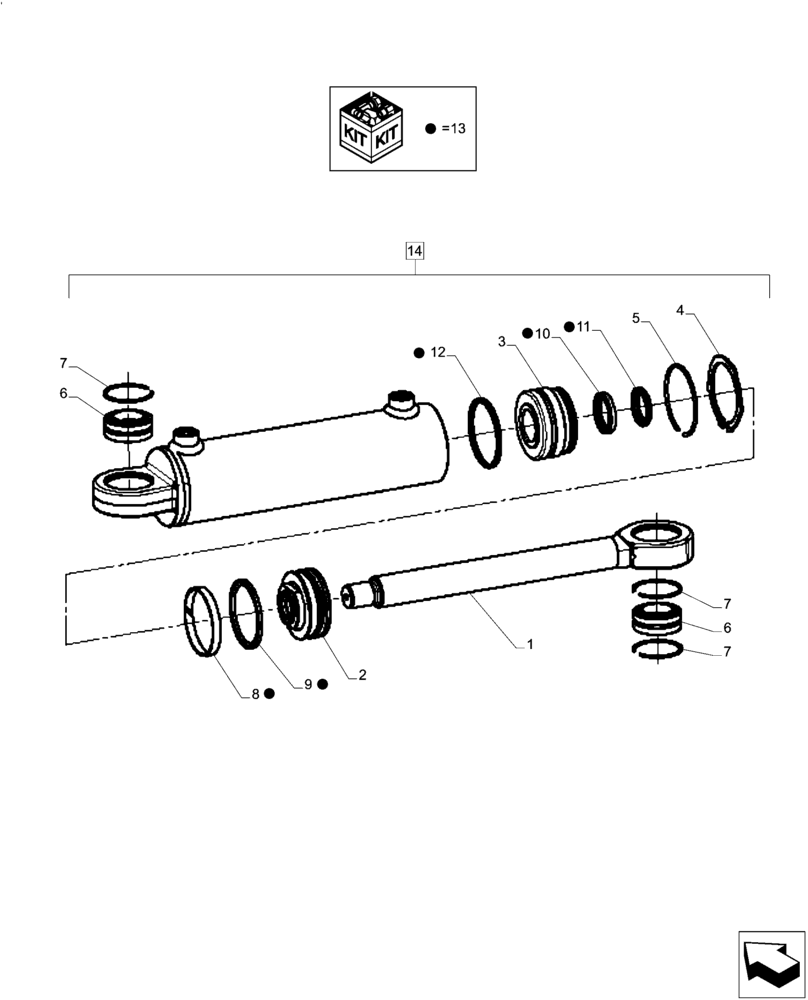

Запчасти Case IH MAGNUM 235 (41.216.AN[02]) - FRONT AXLE, HYDRAULIC STEERING, CYLINDER (41) - STEERING

1

47502209

PISTON ROD

1шт.

2

47502206

PISTON

1шт.

3

47502205

CYLINDER END CAP,76.2mm Bore, 36mm Rod, mm W

1шт.

4

47436962

RING

1шт.

5

47436960

RING

1шт.

6

47502210

BALL JOINT

2шт.

7

47436955

RING

3шт.

8

NSS

NOT SOLD SEPARAT

Guide Ring Incl in 13

1шт.

9

NSS

NOT SOLD SEPARAT

Piston Seal Incl in 13

2шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal Incl in 13

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Wiper Incl in 13

1шт.

12

NSS

NOT SOLD SEPARAT

Static Seal Incl in 13

1шт.

13

47436943

SEAL KIT

Incl 8 - 12

1шт.

14

84308818

CYLINDER

Incl 1 - 13

2шт.
