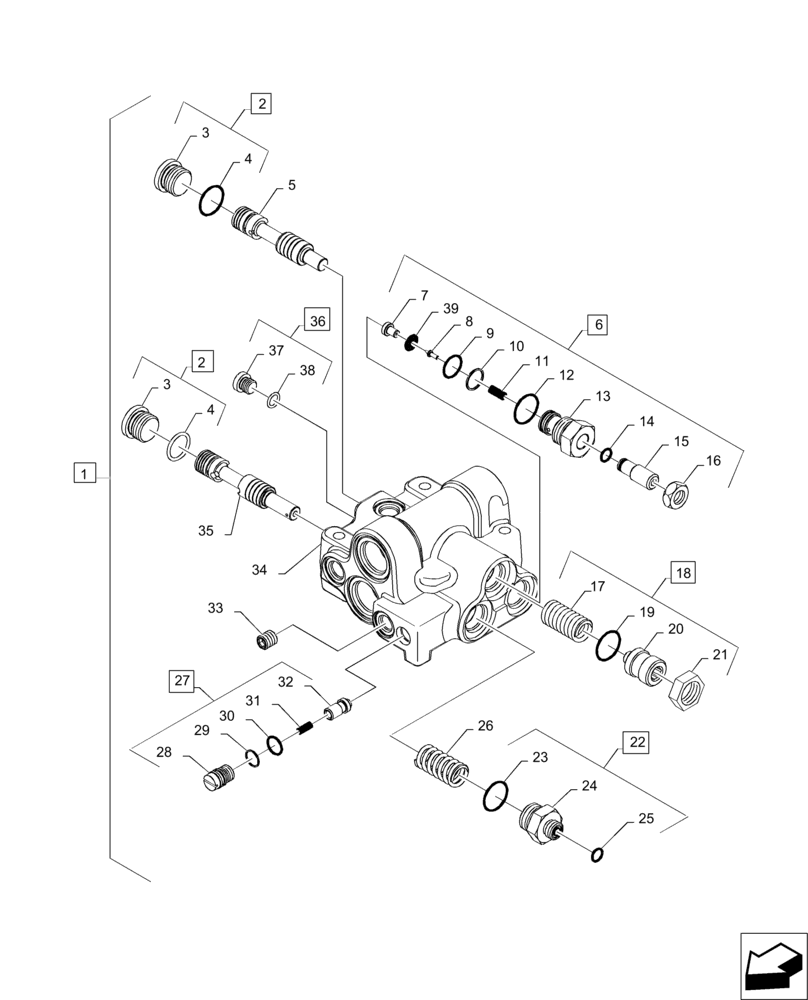

Запчасти Case IH MAGNUM 235 (41.200.BY[01]) - PRIORITY & REGULATOR VALVE ASSEMBLY (41) - STEERING

1

84340289

VALVE

Assy, Incl 2 - 39

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

404442A1

SPOOL

1шт.

6

130060A2

PILOT VALVE

EF, Incl 7 - 16, 39

1шт.

7

196095A1

SEAT

1шт.

8

G108556

VALVE POPPET

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

11

130059A1

SPRING

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

G108866

HOUSING,1-1/16" - 12

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

G108867

PLUG

1шт.

16

25-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

17

448102A2

SPRING

1шт.

18

84168371

PLUG

Incl 7, 19 - 21

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 18

1шт.

21

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

22

313940A1

FITTING

Incl 23 - 25

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 22

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

408447A1

COMPRESSION SPRING

1шт.

27

1542563C1

KIT

Incl 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 27

1шт.

29

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

30

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Spring, Incl in 27

1шт.

32

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

33

87427769

PLUG

1шт.

34

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

35

87448952

SPOOL

1шт.

36

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 36

1шт.

38

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

39

196096A1

SCREEN

1шт.
