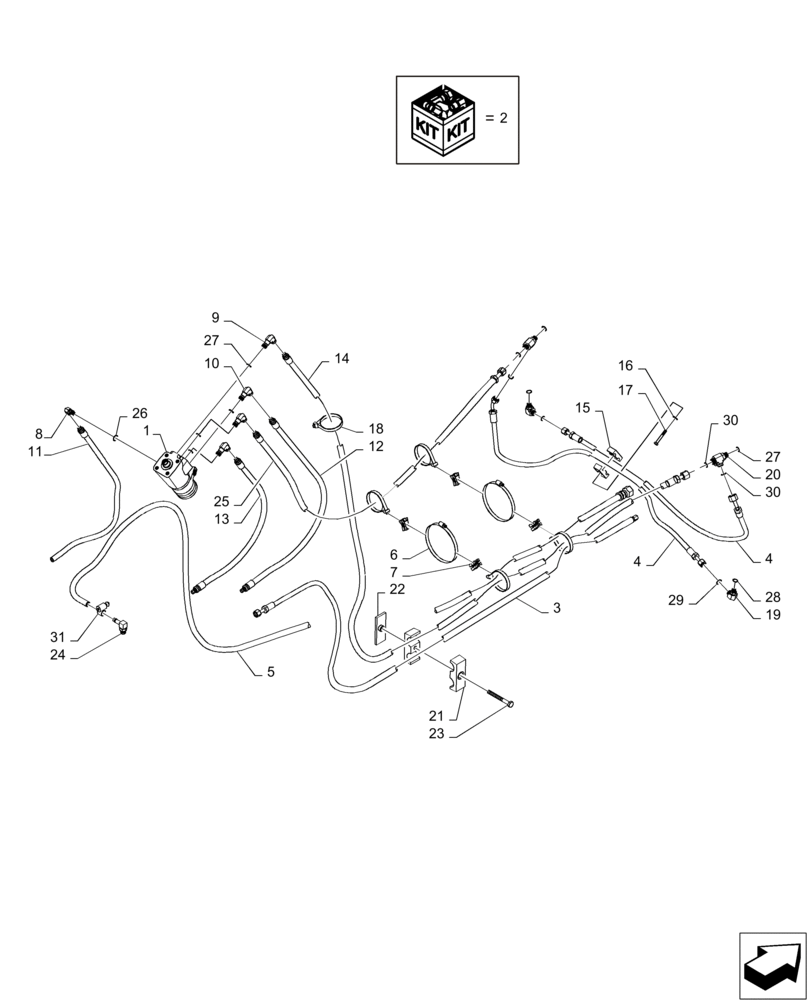

Запчасти Case IH MAGNUM 235 (41.200.AT[01]) - STEERING SYSTEM, MFD (41) - STEERING

1

445304A2

PUMP

293 cc - CLASSE 4 SEM AUTOGUIDANCE / CLASS 4 WITHOUT AUTOGUIDANCE

1шт.

2

87454545

SEAL KIT

1шт.

3

84359029

HOSE,10mm ID x 2456mm L

1шт.

4

249817A2

HOSE,9.52mm ID x 778mm L

2шт.

5

84349584

HOSE,12.7mm ID x 2980mm L, SAE 30R2

1шт.

6

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

7

86991001

SPACER

2шт.

8

87401122

ELBOW

1шт.

9

87401123

ELBOW

2шт.

10

87401124

90 ELBOW

2шт.

11

84127336

HOSE,9.53mm ID x 825mm L

1шт.

12

84127337

HOSE,12.7mm ID x 750mm L

1шт.

13

84352407

HYDRAULIC HOSE

1шт.

14

84212580

HOSE ASSY.,12.5mm ID x 2377mm L, SAE 100R17

2шт.

15

87000150

CLAMP,15.869mm ID

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

17

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

18

86991007

CABLE TIE,509mm L

CABLE STRAP

5шт.

19

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

2шт.

20

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

21

384870A1

PLATE

3шт.

22

384871A1

PLATE

3шт.

23

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

3шт.

24

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

25

84362821

HOSE,12.7mm ID x 2452mm L, SAE 100R17

1шт.

26

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

31

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.
