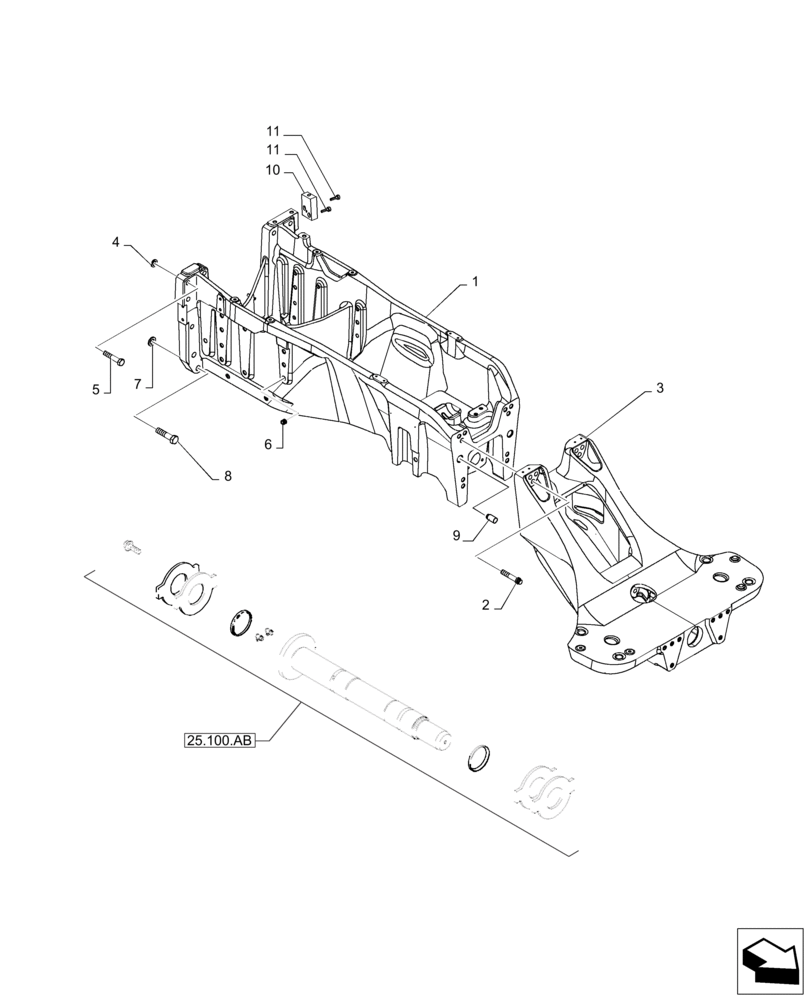

Запчасти Case IH MAGNUM 235 (39.100.AY) - FRONT FRAME, STANDARD & SUSPENDED AXLE (39) - FRAMES AND BALLASTING

1

47736766

FRAME

Front

1шт.

2

87301555

HEX SOC SCREW,M20 x 80mm, Cl 12.9

10шт.

3

84575697

FRAME

1шт.

4

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

5

828-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

8шт.

6

305138A1

PLUG

14шт.

7

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

8

828-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

6шт.

9

87742360

DOWEL,M20 x 50mm, HDN

2шт.

10

47816156

SUPPORT

1шт.

11

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.
