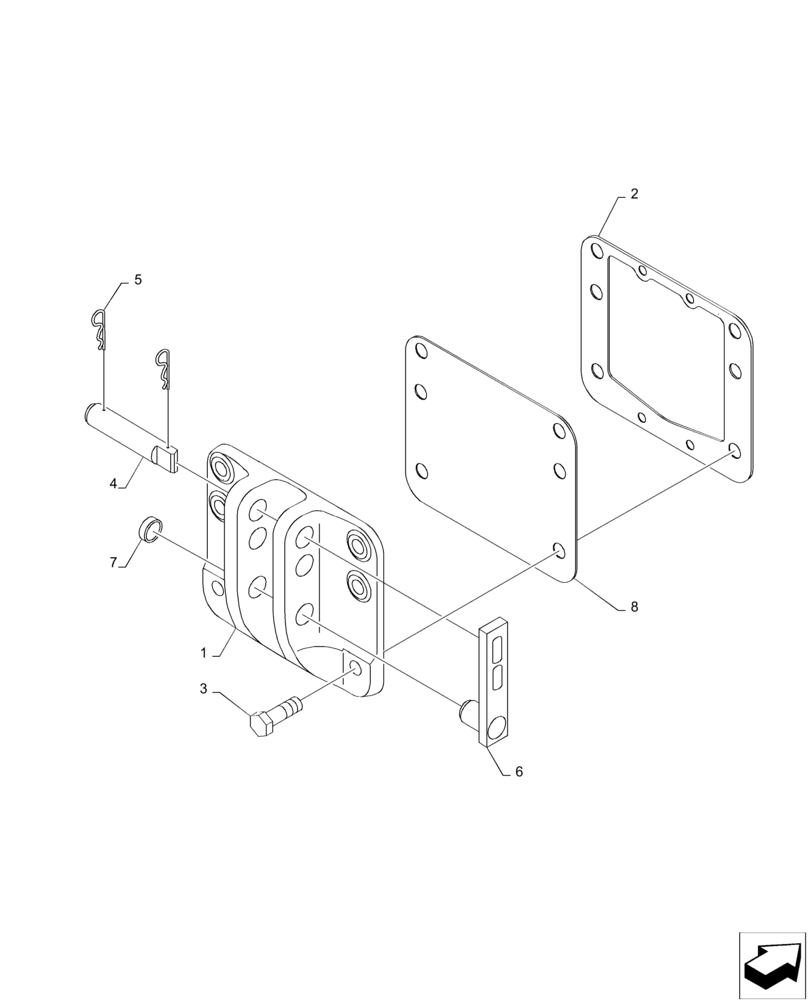

Запчасти Case IH MAGNUM 235 (37.110.AE[02]) - HITCH, TOP LINK BRACKET (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84300123

MOUNT

1шт.

2

379145A2

GASKET,0.79mm Thk

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

378929A1

PIN,31.65mm OD x 180mm L

1шт.

5

486830R1

COTTER PIN

2шт.

6

378932A1

PIN,31.65mm OD x 46mm L

1шт.

7

641-3432

PLUG,M32, Conical

3шт.

8

84387265

PLATE

1шт.
