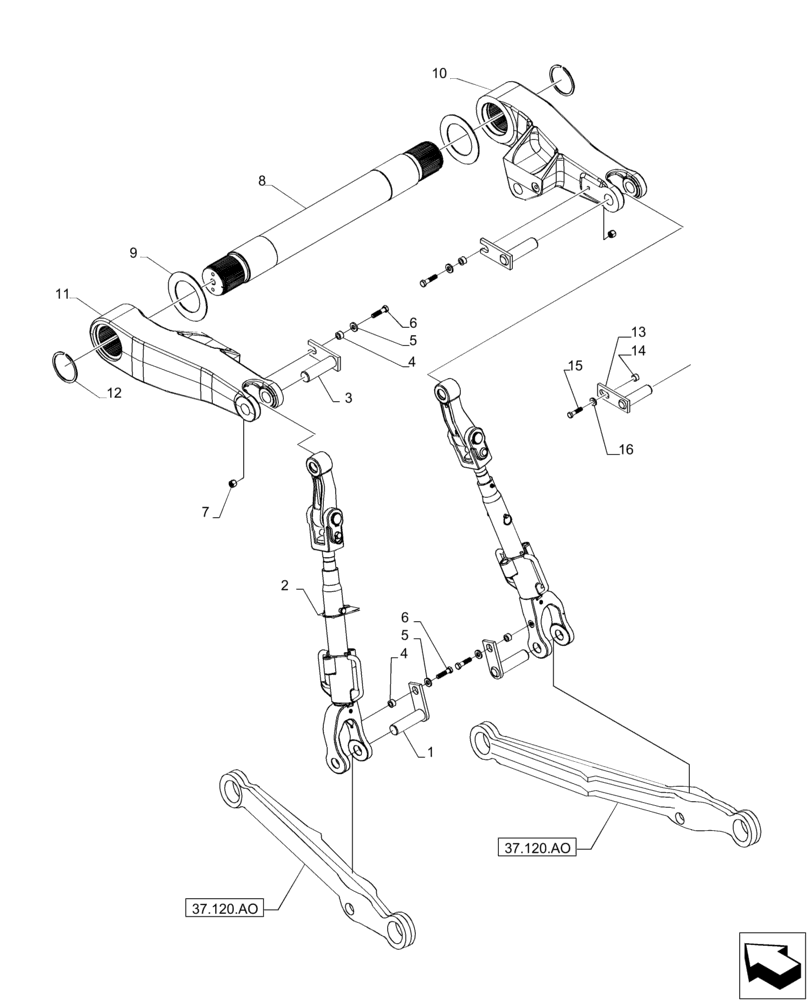

Запчасти Case IH MAGNUM 235 (37.110.AE[01]) - HITCH, LIFT LINK ASSEMBLY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

414696A1

PIN ASSY.,34.91mm OD x 140mm L

2шт.

2

433205A2

SPRING

1шт.

3

321367A3

PIN ASSY.,34.91mm OD x 133mm L

2шт.

4

321365A1

SPACER,13.5mm ID x 22.23mm OD x 12.5mm L

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

84420449

ROCKSHAFT

1шт.

9

87572476

WASHER

2шт.

10

84275822

ARM

1шт.

11

84275823

ARM

1шт.

12

101-11350

SNAP RING,#350, Ext

2шт.

13

391415A1

PIN,34.91mm OD x 154mm L

Assy

4шт.

14

414675A1

SPACER

4шт.

15

806-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.
