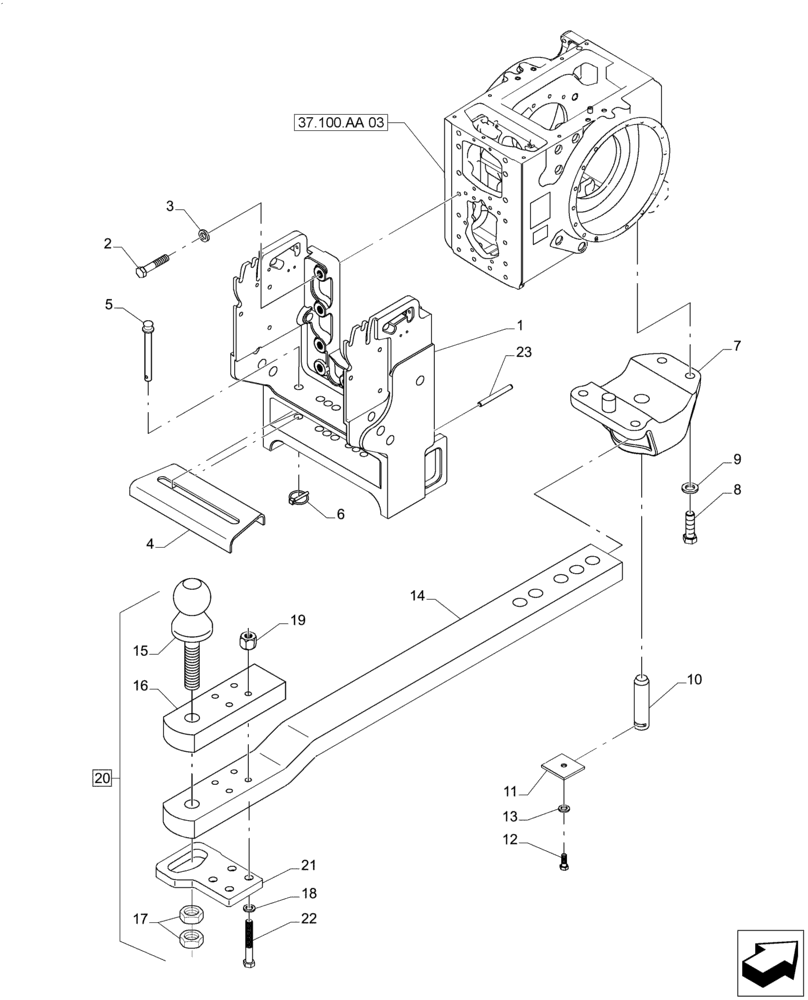

Запчасти Case IH MAGNUM 235 (37.100.AA[03]) - DRAWBAR & HAMMERSTRAP, HIGH CAPACITY - CANE VERSION (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87712383

FRAME,Hitch

1шт.

2

87698770

LOCK BOLT,M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

238495A3

PLATE

1шт.

5

47410083

PIN

2шт.

6

82014909

LOCK PIN,5.5mm OD

2шт.

7

87720345

BRACKET

1шт.

8

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

4шт.

9

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

87722027

PIN,44.4mm OD x 140mm L

1шт.

11

87720346

RETAINER

1шт.

12

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

14

47404227

DRAWBAR

1шт.

15

47410332

PIVOT

1шт.

16

47410089

DRAWBAR

1шт.

17

47404212

NUT

2шт.

18

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

19

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

20

47404209

DRAWBAR

Incl 14 - 19, 21, 22

1шт.

21

87574391

STEEL PLATE

1шт.

22

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

4шт.

23

37-11232

DOWEL,3/4" x 2"

2шт.
