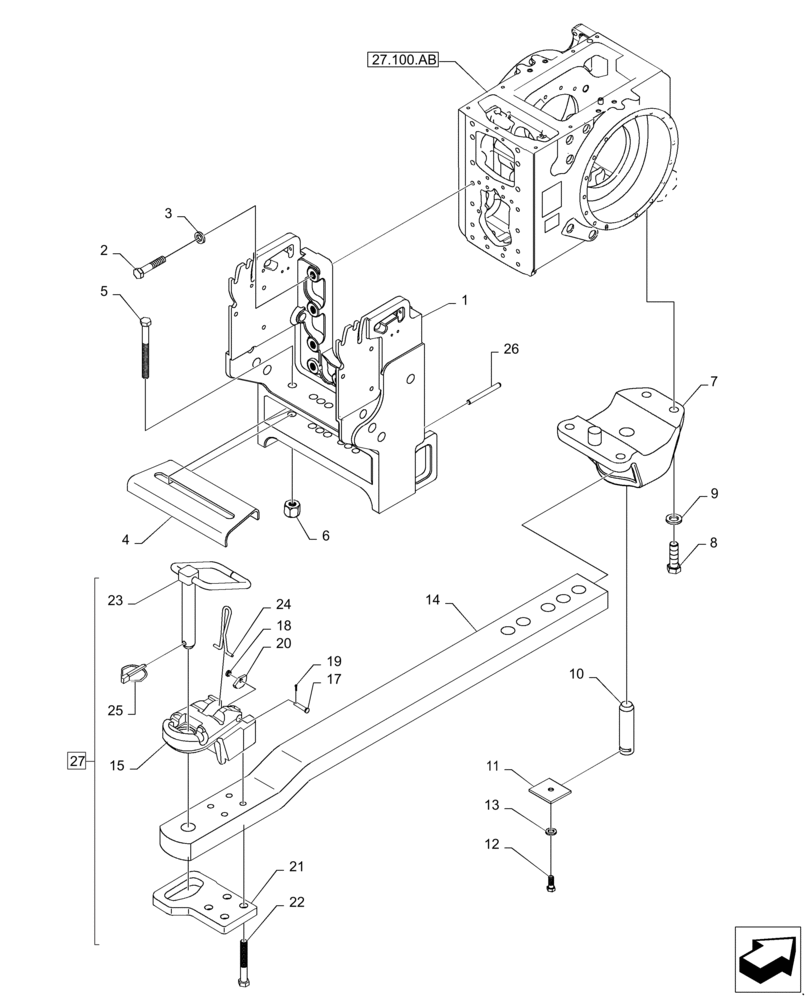

Запчасти Case IH MAGNUM 235 (37.100.AA[02]) - DRAWBAR & HAMMERSTRAP, HIGH CAPACITY, CAT IV (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87712383

FRAME,Hitch

1шт.

2

87698770

LOCK BOLT,M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

238495A3

PLATE

1шт.

5

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

6

832-10416

NUT,M16 x 2, Cl 8

2шт.

7

87720345

BRACKET

1шт.

8

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

4шт.

9

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

87722027

PIN,44.4mm OD x 140mm L

1шт.

11

87720346

RETAINER

1шт.

12

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

14

87688072

SWINGING DRAWBAR

1шт.

15

87615031

STRAP

1шт.

17

87016625

CLEVIS PIN,3/8" x 2"

1шт.

18

87617590

STOP LOCK

1шт.

19

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

1шт.

20

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

21

87574391

STEEL PLATE

1шт.

22

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

23

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

24

375721A1

PIN

1шт.

25

87522067

LOCK PIN,11.5mm OD

1шт.

26

37-11232

DOWEL,3/4" x 2"

2шт.

27

87688064

SWINGING DRAWBAR

Assy, Incl 14, 15, 21 - 25

1шт.
