Запчасти Case IH MAGNUM 235 (35.310.AC[01]) - PLATE ASSEMBLY, VALVE MOUNTING, LEFT HAND SIDE (35) - HYDRAULIC SYSTEMS

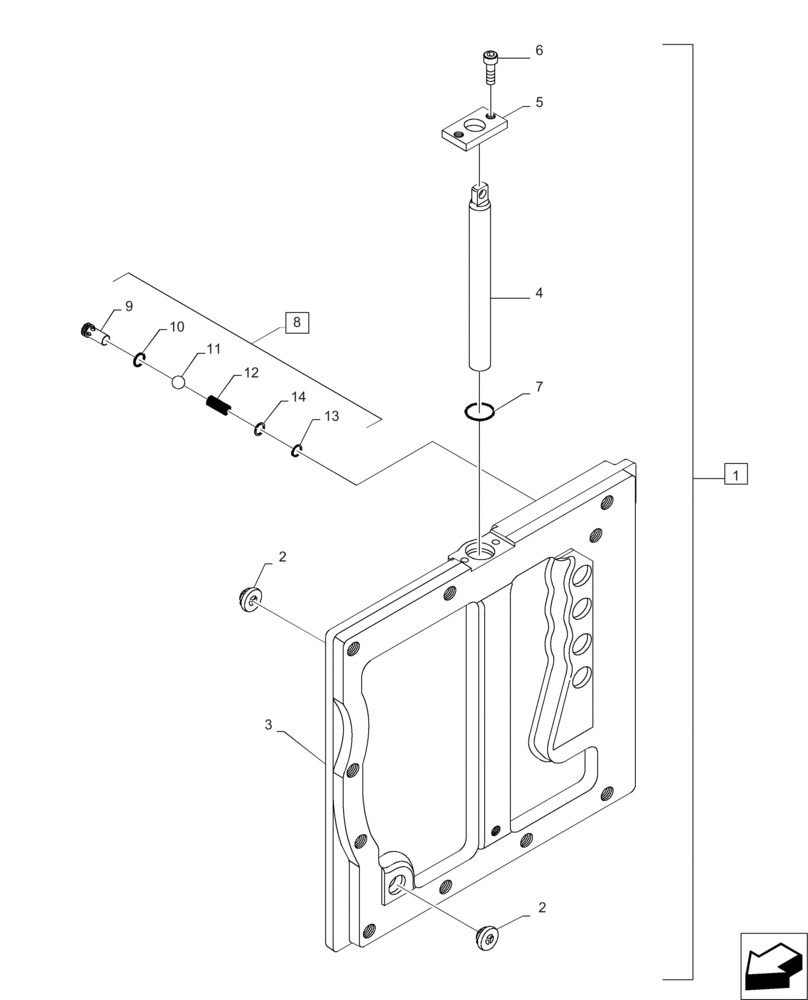

Схема запчастей Case IH MAGNUM 235 - (35.310.AC[01]) - PLATE ASSEMBLY, VALVE MOUNTING, LEFT HAND SIDE (35) - HYDRAULIC SYSTEMS
7
3
8
14
9
11
2
2
4
1
13
6
10
5
12

Артикул

Название

Примечание

Количество

1

87433653

PLATE ASSY.

Incl 2 - 14

1шт.

2

1994615C2

VALVE, CHECK

2шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

234802A2

PIN,15.8mm OD x 164.91mm L

1шт.

5

315904A1

RETAINING PLATE

1шт.

6

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

7

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

8

445492A2

CHECK VALVE

Incl 9 -14

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

1шт.

10

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

11

86976060

BALL,7.14mm OD, Gr 24

1шт.

12

445494A1

VALVE SPRING,7.21mm OD x 18.53mm L

1шт.

13

100-2131

SNAP RING,0.312", Int, #31

1шт.

14

86988656

SPRING WASHER,Spring, 5.5mm ID x 7.5mm OD x 1.1mm Thk

1шт.

Выбрано товаров: 14
