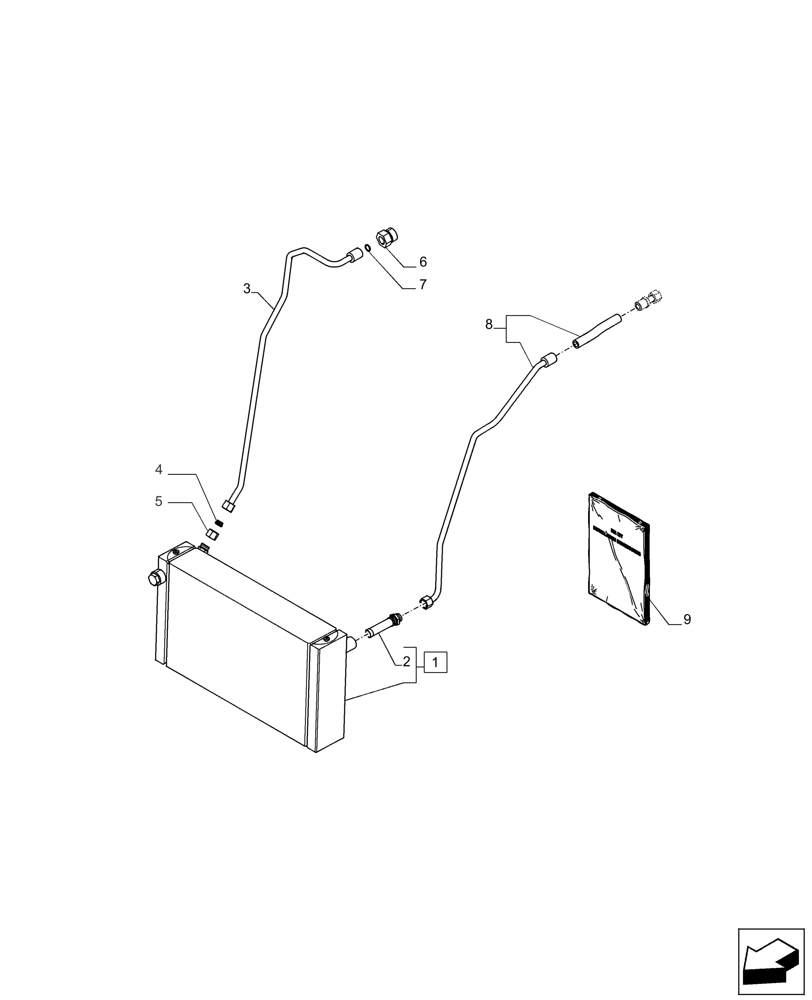

Запчасти Case IH MAGNUM 235 (35.300.AB[02]) - HYDRAULIC SYSTEM, OIL COOLER WITH POWERSHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

47612642

OIL COOLER

140 mm deep, Incl 2

1шт.

2

47608879

FILTER STRAINER

1шт.

3

84537868

HYD TUBE

RH Front

1шт.

4

203-928

SLEEVE,ORFS, M20 Tube, Braze

1шт.

5

86639096

TUBE NUT,1-3/16'-12 ORFS x 26.5mm Thk

1шт.

6

703-104

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

47640101

HYD TUBE

Return, Front

1шт.

9

47553818

INSTRUCTION

1шт.
