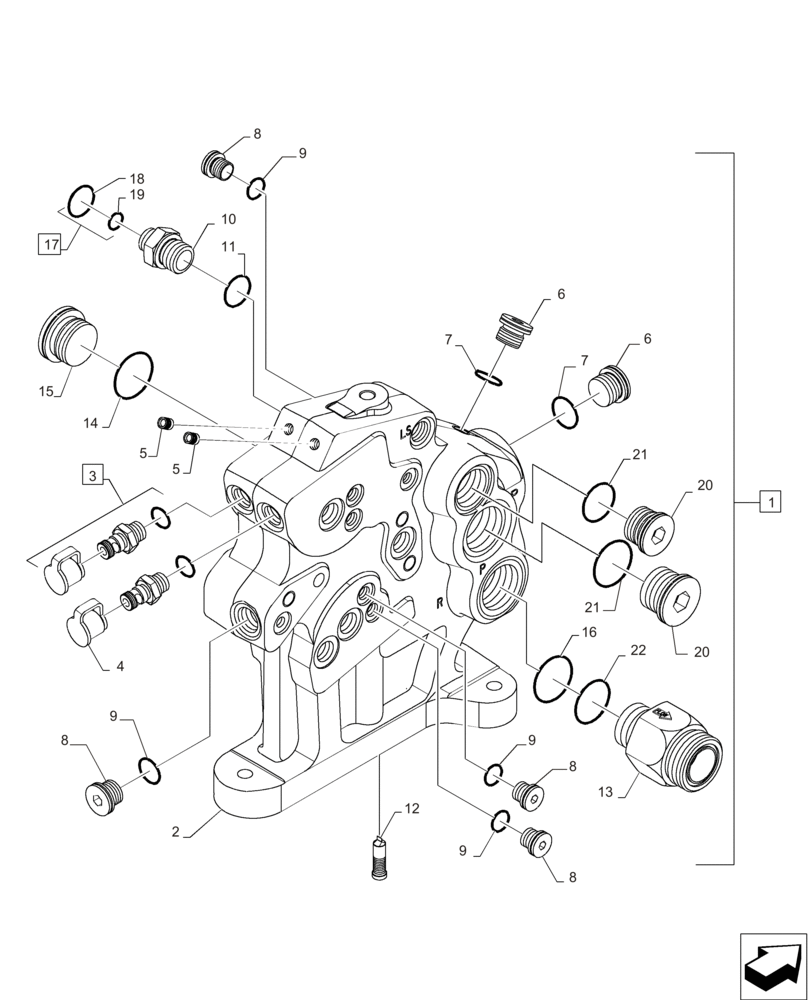

Запчасти Case IH MAGNUM 235 (35.204.BV) - MANIFOLD VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87659941

MANIFOLD VALVE

Incl 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

178889A1

DIAGNOSTIC COUPLER

Incl 4

2шт.

4

143349A1

DUST CAP

1шт.

5

282839A1

PLUG,8mm OD x 8.5mm L

2шт.

6

221578A1

PLUG,M18 x 1.5 ORB

2шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

5шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

221579A1

PLUG,M22 x 1.5 ORB

2шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

13

254851A1

CHECK VALVE

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

221527A1

PLUG,Hex Soc, M33 x 2, ORB

2шт.

16

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Incl 18, 19

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

221580A1

PLUG,M27 x 2 ORB

1шт.

21

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

22

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
