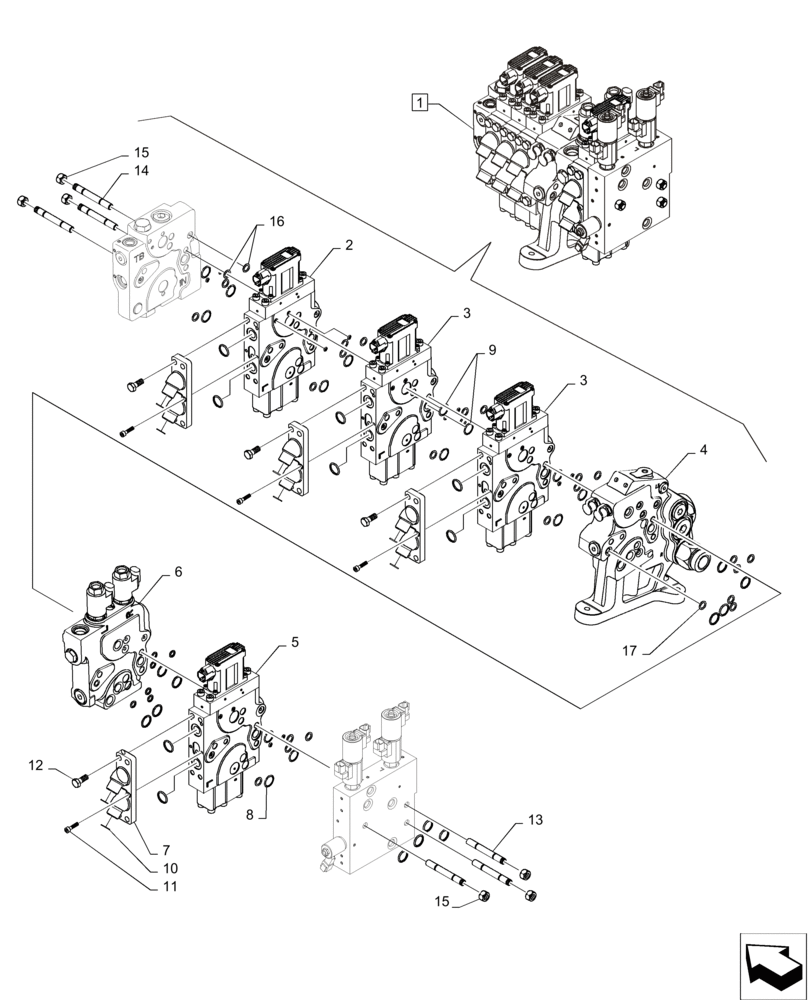

Запчасти Case IH MAGNUM 235 (35.204.BE[03]) - REMOTE HYDRAULIC VALVE 4 STACK (35) - HYDRAULIC SYSTEMS

1

87667702

CONTROL VALVE

Incl 2 - 17

1шт.

2

87496191

HYD VALVE SECTION

Assy

1шт.

3

87496186

HYD VALVE SECTION

Assy

2шт.

4

87659941

MANIFOLD VALVE

1шт.

5

87496189

VALVE SECTION,Assembly, Aux Valve

Assy

1шт.

6

84124235

VALVE

Assy

2шт.

7

435643A1

COVER

4шт.

8

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

1шт.

9

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

8шт.

12

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

13

87669808

STUD

3шт.

14

87664022

STUD

3шт.

15

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

16

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

17

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

1шт.
