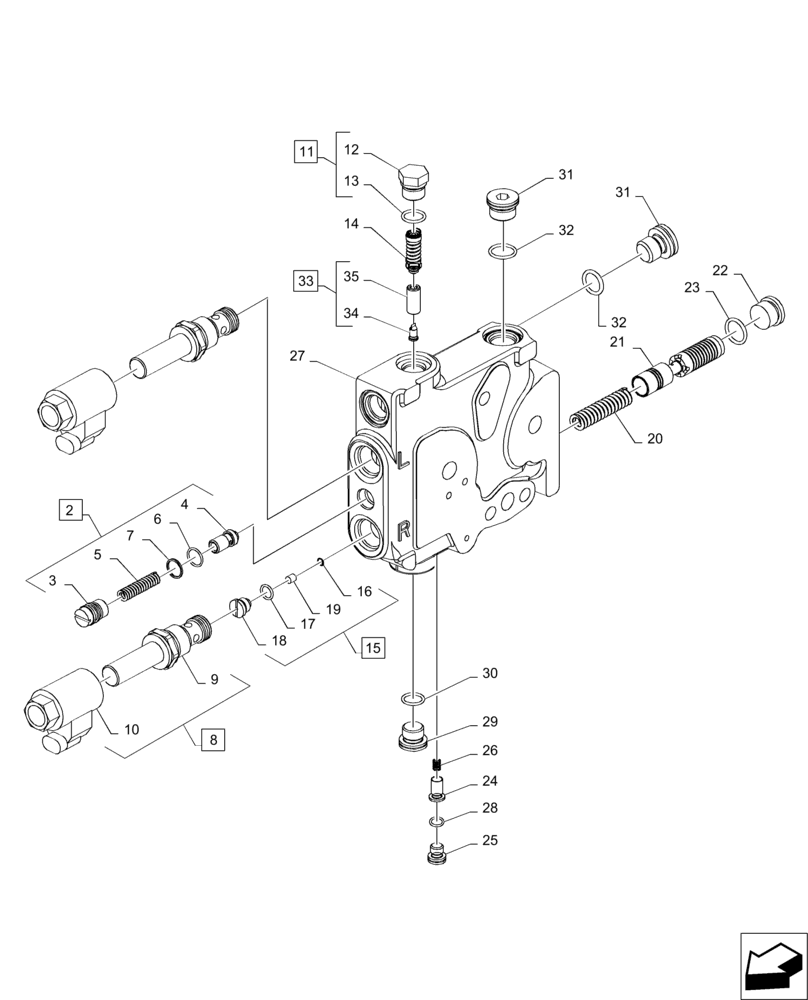

Запчасти Case IH MAGNUM 235 (35.204.BE[02]) - VALVE ASSEMBLY, HITCH (35) - HYDRAULIC SYSTEMS

1

84124235

VALVE

Assy

1шт.

2

1542563C1

KIT

Incl 3 - 7

1шт.

3

1994580C1

PLUG

1шт.

4

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

5

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

8

84281970

SOLENOID

Incl 9, 10

2шт.

9

84294073

SOLENOID

1шт.

10

87608473

COIL

1шт.

11

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

Incl 12, 13

1шт.

12

385521A1

PLUG

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

87619813

CHECK VALVE,1/2" - 20

Incl 16 - 19

1шт.

16

100-2125

SNAP RING,M25, Int

1шт.

17

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

19

NSS

NOT SOLD SEPARAT

Pin, Incl in 15

1шт.

20

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

21

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

1шт.

22

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

87648631

PIN,8mm OD x 19mm L

1шт.

25

87648607

PLUG,M12 x 1.5 ORB

1шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

27

84124236

VALVE BODY

1шт.

28

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

29

221578A1

PLUG,M18 x 1.5 ORB

1шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

221579A1

PLUG,M22 x 1.5 ORB

2шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

33

87518992

PLUG

Incl 34, 35

1шт.

34

133519C1

SCREEN

1шт.

35

NSS

NOT SOLD SEPARAT

Piston, Incl in 33

1шт.
