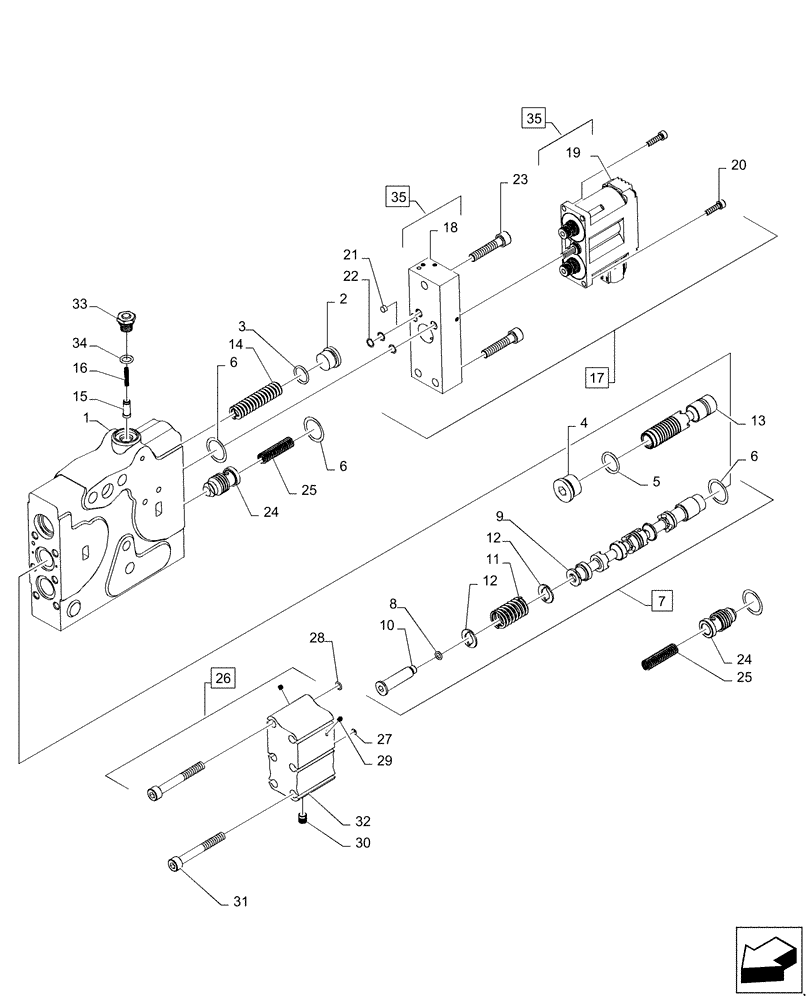

Запчасти Case IH MAGNUM 235 (35.204.BE[01]) - REMOTE HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

87496186

HYD VALVE SECTION

Assy, Main

1шт.

1

87496189

VALVE SECTION,Assembly, Aux Valve

Assy, LH

1шт.

1

87496191

HYD VALVE SECTION

Assy, RH

1шт.

2

218-5210

PLUG,Hex, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

4шт.

7

47499455

SPOOL

Incl 4 - 6, 8 - 13

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

47499462

Spool, Incl in 7

1шт.

10

47426760

PLUG,5/16" - 24

1шт.

11

47423002

SPRING,17.6mm OD x 45.86mm L

1шт.

12

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

2шт.

13

84297867

SPOOL

1шт.

14

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

15

87648631

PIN,8mm OD x 19mm L

1шт.

16

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

17

84300443

SOLENOID

Incl 18 - 23

1шт.

18

NSS

NOT SOLD SEPARAT

Body, Incl in 35

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 35

1шт.

20

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

21

87714123

FILTER

1шт.

22

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

23

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

24

84317307

POPPET

2шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

26

87329482

VALVE BODY

Incl 27 - 32

1шт.

27

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

28

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

29

282836A1

PLUG,4mm OD x 4mm L

2шт.

30

282839A1

PLUG,8mm OD x 8.5mm L

2шт.

31

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

32

NSS

NOT SOLD SEPARAT

Body, Incl in 26

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

47643919

VALVE

Incl 18, 19

1шт.
