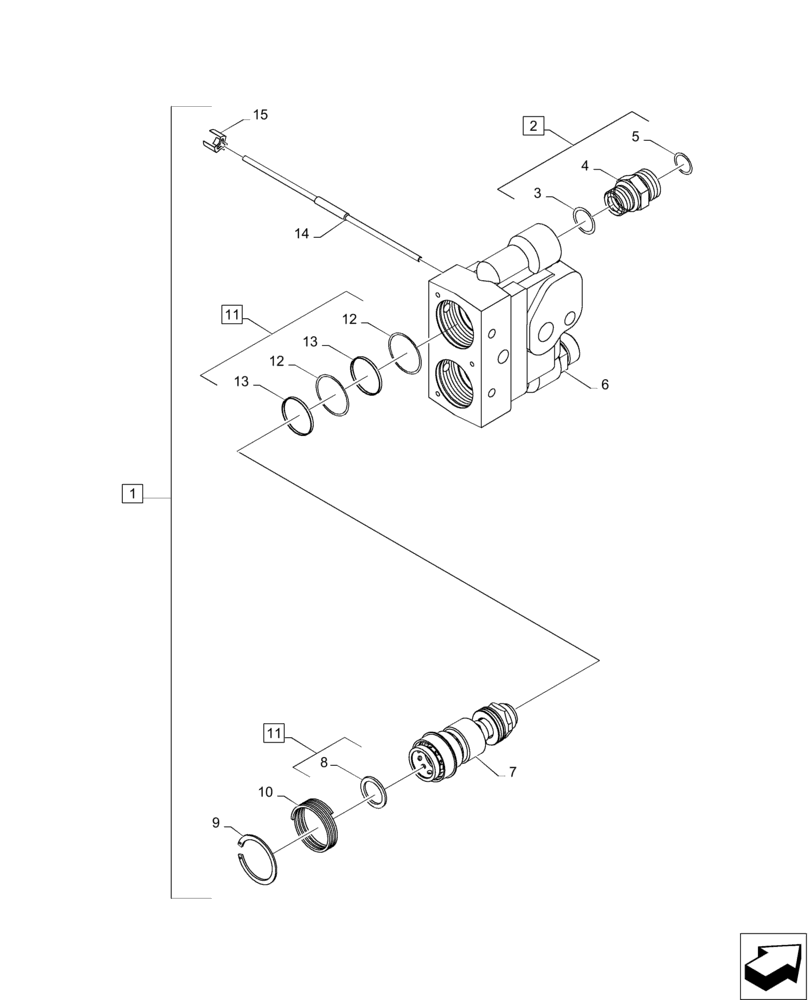

Запчасти Case IH MAGNUM 235 (35.204.BB[03]) - REMOTE HYDRAULIC COUPLINGS (35) - HYDRAULIC SYSTEMS

1

275182A2

HYDRAULIC VALVE

Incl 2 - 15

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 3 - 5

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

7

84262367

CARTRIDGE

2шт.

8

345192A1

SEAL,0.139" Thk x 0.796" ID, -211, 88 Duro

2шт.

9

100-28162

SNAP RING,1.625", Int, #162

2шт.

10

93330C1

VALVE SPRING

2шт.

11

345193A1

SEAL KIT

Incl 8, 12, 13

1шт.

12

14454480

O-RING,1.301" ID x 0.07" Width

4шт.

13

93332C1

SEAL ASSY.

4шт.

14

93329C2

SPRING

1шт.

15

361880A1

RETAINER

1шт.
