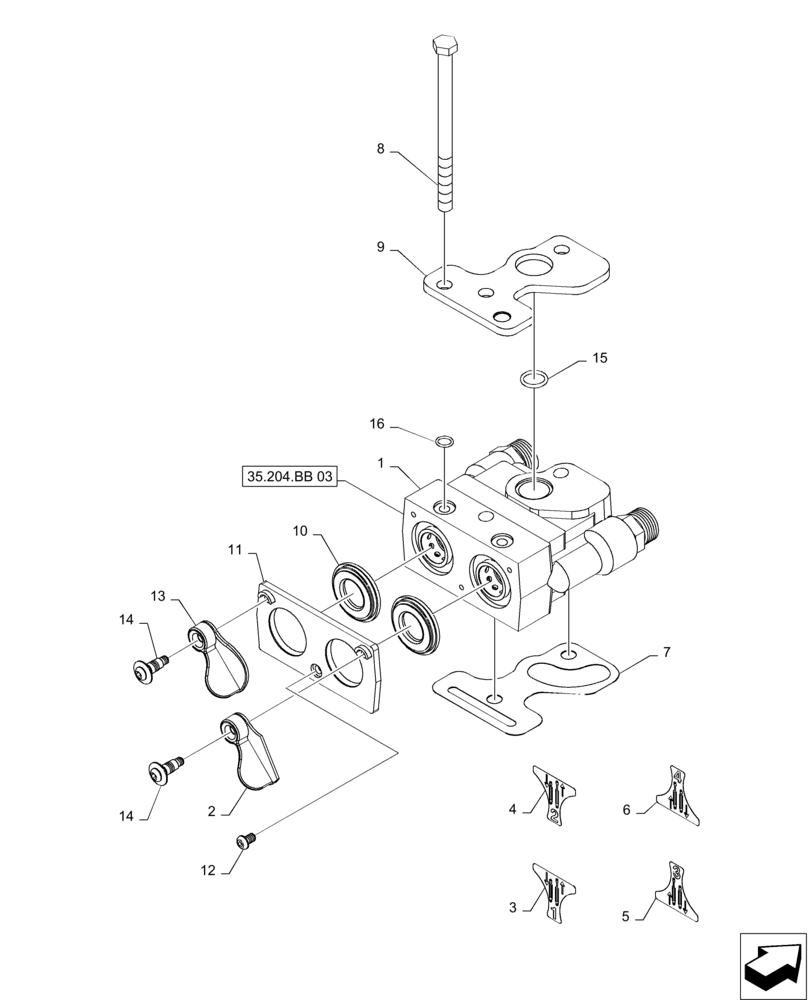

Запчасти Case IH MAGNUM 235 (35.204.BB[02]) - REMOTE HYDRAULIC COUPLING MOUNTING (35) - HYDRAULIC SYSTEMS

1

275182A2

HYDRAULIC VALVE

1шт.

2

387611A1

DUST CAP

1шт.

3

284327A1

DECAL

1шт.

4

284328A1

DECAL

1шт.

5

84288709

DECAL

1шт.

6

284330A1

DECAL

1шт.

7

84170594

GASKET,0.44mm Thk

2шт.

8

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

2шт.

9

258671A2

PLATE

2шт.

10

240969A1

SEAL,22.9mm ID x 46.2mm OD x 8.07mm Thk

1шт.

11

240971A2

PLATE

1шт.

12

240970A2

HEX SOC SCREW,BTN HD, M6 x 1 x 10mm

1шт.

13

240974A2

DOOR COVER

1шт.

14

240973A2

CAPTIVE WASHER SCREW,Hex Flng, M16 x 1 x 25mm

1шт.

15

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
