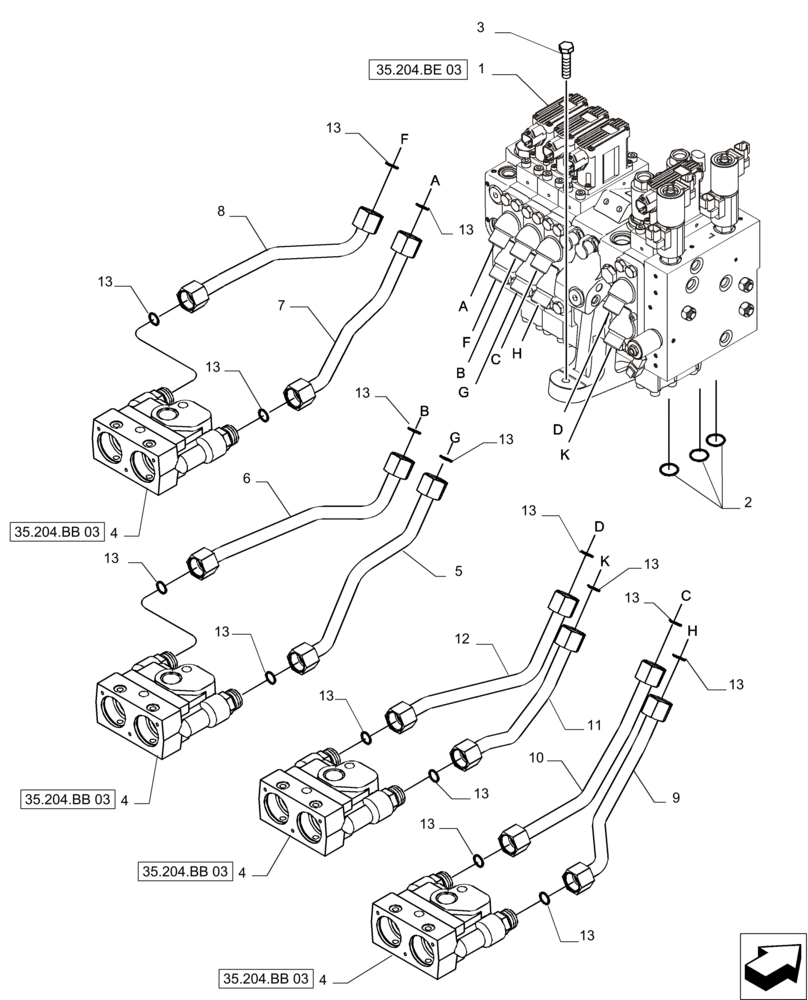

Запчасти Case IH MAGNUM 235 (35.204.BB[01]) - HYDRAULIC SYSTEM, REMOTE COUPLERS (35) - HYDRAULIC SYSTEMS

1

87667702

CONTROL VALVE

1шт.

2

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3шт.

3

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

4

275182A2

HYDRAULIC VALVE

4шт.

5

87568065

HYD TUBE

1шт.

6

87568064

HYD TUBE

1шт.

7

87568067

HYD TUBE

1шт.

8

87568066

HYD TUBE

1шт.

9

87568069

HYD TUBE

1шт.

10

87568068

HYD TUBE

1шт.

11

84128005

HYD TUBE

1шт.

12

84392194

HYD TUBE

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
