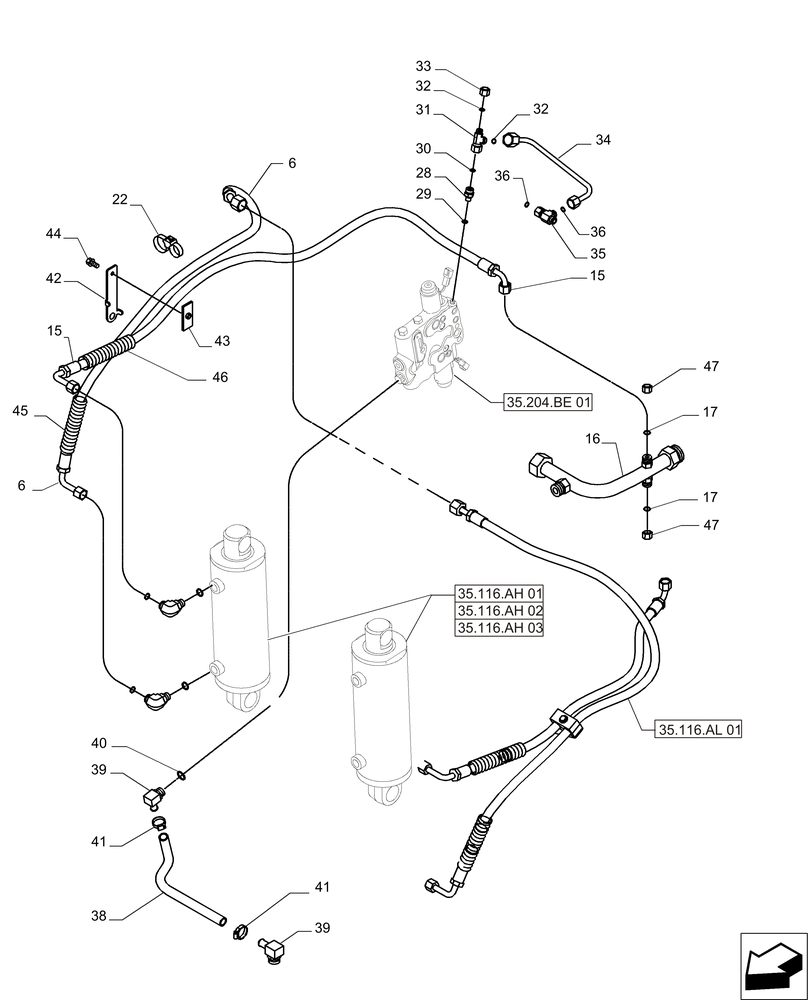

Запчасти Case IH MAGNUM 235 (35.116.AL[02]) - HOOK OF THE HYDRAULICAL SYSTEM (35) - HYDRAULIC SYSTEMS

6

87450321

HOSE,12.7mm ID x 816mm L, SAE 100R2

1шт.

6

87448974

HOSE

1шт.

15

87708028

HOSE

1шт.

15

87448973

HOSE,12.7mm ID x 1525mm L, SAE 100R6

1шт.

16

84274474

HYD TUBE

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

86991000

CLAMP

22шт.

28

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

1шт.

29

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

9625546

CAP,11/16" - 16 ORFS

1шт.

34

87356174

TUBE,0.375" OD

1шт.

35

86729454

TEE

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

39

87309895

ELBOW

2шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

41

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

42

87318116

BRACKET

1шт.

43

384871A1

PLATE

1шт.

44

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

3шт.

45

87318282

CONDUIT

1шт.

47

9840575

CAP,13/16" - 16 ORFS

2шт.
