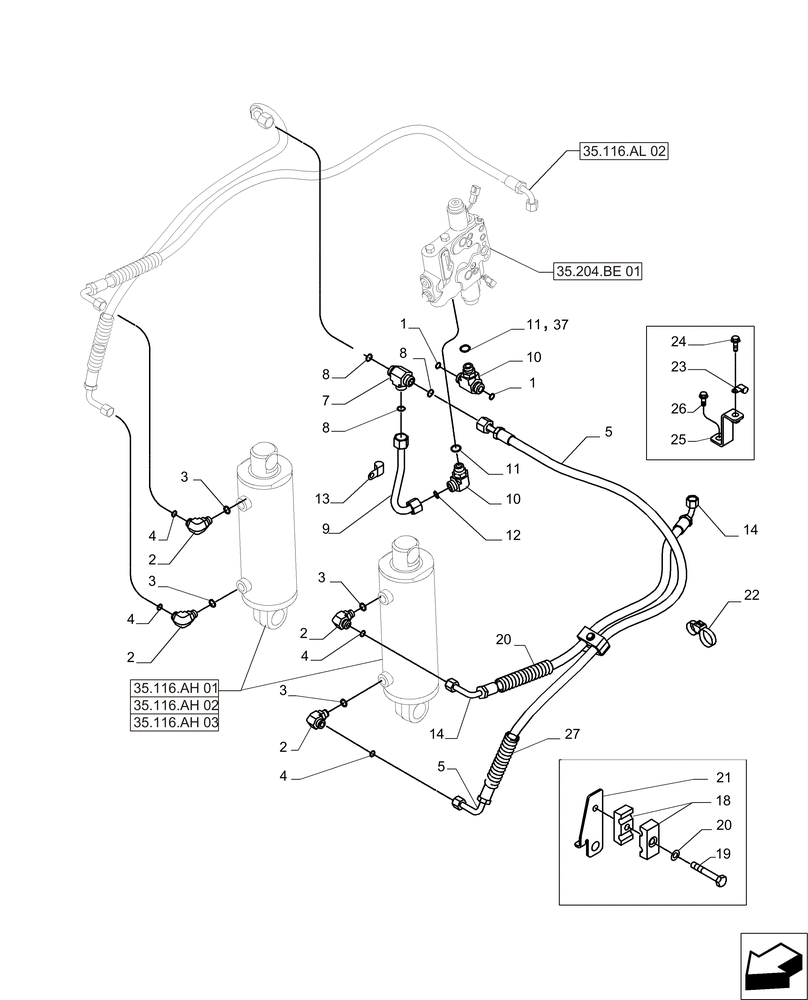

Запчасти Case IH MAGNUM 235 (35.116.AL[01]) - HOOK OF THE HYDRAULICAL SYSTEM (35) - HYDRAULIC SYSTEMS

1

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

2

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

3

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87540691

HOSE,12.7mm ID x 1115mm L, SAE 100R2

1шт.

5

87448971

HOSE,12.7mm ID x 1369mm L, SAE 100R2

1шт.

7

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

9

87435660

TUBE,.625" OD

1шт.

10

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

10

87455805

TEE

1шт.

10

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

14

87708026

HOSE

1шт.

14

87448972

HOSE,12.7mm ID x 999mm L, SAE 100R6

1шт.

18

329804A1

CLAMP,22mm ID

2шт.

19

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

87449394

BRACKET

1шт.

23

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

24

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

25

86985195

BRACKET

1шт.

26

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

27

87451399

TUBE

1шт.

Magnum 235, 260, 290, 315

1шт.

27

87451398

CONDUIT

1шт.

Magnum 340

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

87309896

HOSE,15.88 mm ID x 235.00 mm

1шт.

45

87746678

CONDUIT,27mm ID x 34mm OD x 478mm L

1шт.

46

87318283

CONDUIT

1шт.

46

87451402

CONDUIT

1шт.
