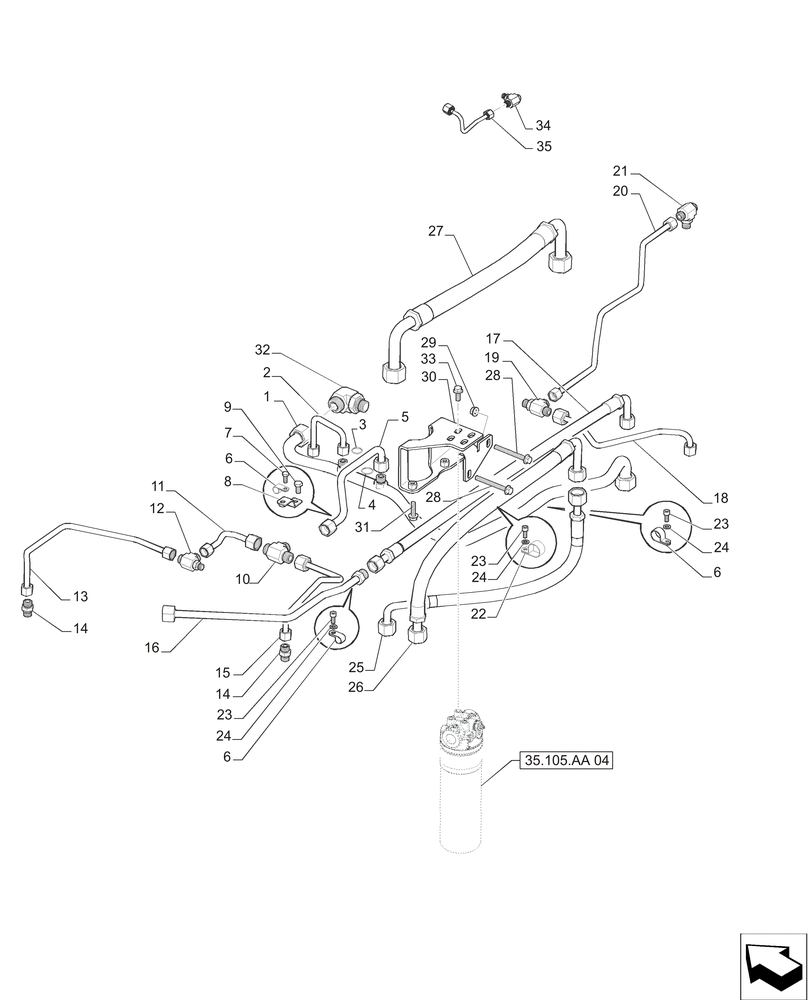

Запчасти Case IH MAGNUM 235 (35.105.AA[03]) - HYDRAUILIC SYSTEM, PISTON PUMP & FILTER, TWIN MEGA FLOW CAPACITY (35) - HYDRAULIC SYSTEMS

1

84395095

HYD TUBE

Assy.

1шт.

2

87319223

TUBE,0.50" OD

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

84379347

TUBE

Assy.

1шт.

6

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

8

84379355

BRACKET

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

11

84469101

HYD TUBE

Assy.

1шт.

12

87025688

TEE

1шт.

13

84226574

HYD TUBE

Assy.

1шт.

14

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

15

87712715

TUBE,.5" OD

1шт.

16

84333101

TUBE

Assy.

1шт.

17

84356773

HOSE,15.88mm ID x 970mm L, SAE 100R1

1шт.

18

451060A3

TUBE

1шт.

19

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

20

437336A3

HYD TUBE

1шт.

21

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

23

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

25

84355281

HOSE,15.88mm ID x 700mm L, SAE 100R1

1шт.

26

84331762

HOSE,19.05mm ID x 800mm L, SAE 100R16

1шт.

27

84354805

HOSE,25.4mm ID x 680mm L, SAE 100R16

1шт.

28

844-10090

BOLT,Hvy Hex, M10 x 90mm, Cl 8.8

1шт.

29

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

30

84389204

BRACKET

, Serial Range: -AJB0408562ZCRD08795

1шт.

30

84547851

BRACKET

, Start Serial: AJB0408562ZCRD08796

1шт.

31

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

32

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

33

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

34

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

35

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

1шт.
