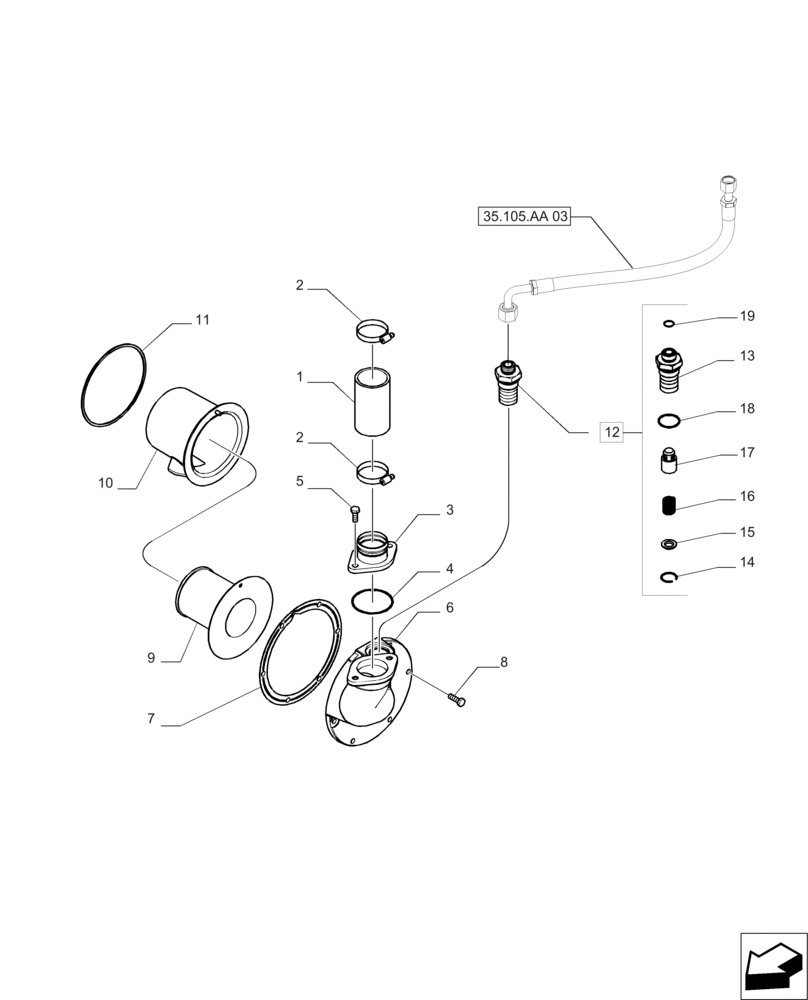

Запчасти Case IH MAGNUM 235 (35.105.AA[02]) - HYDRAUILIC SYSTEM, PISTON PUMP & FILTER, TWIN MEGA FLOW CAPACITY (35) - HYDRAULIC SYSTEMS

1

407386A1

HOSE

1шт.

2

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2шт.

3

84358495

ADAPTER

1шт.

4

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

403416A1

COVER

1шт.

7

139241C5

GASKET,0.79mm Thk

1шт.

8

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

6шт.

9

1348335C1

SCREEN

1шт.

10

1348337C1

SHROUD

1шт.

11

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

1шт.

12

407616A2

VALVE,M42 x 2

Incl 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

14

107452A1

CIRCLIP

1шт.

15

107456A1

CUP WASHER

1шт.

16

431858A1

SPRING

1шт.

17

NSS

NOT SOLD SEPARAT

Piston, Incl in 12

1шт.

18

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
