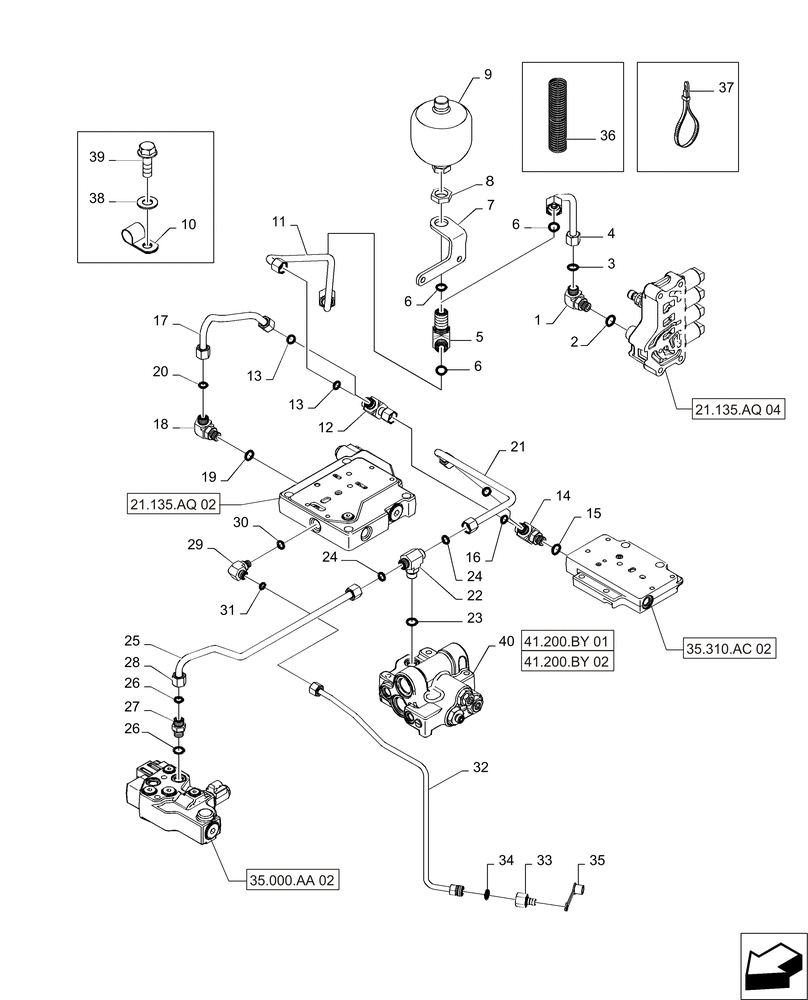

Запчасти Case IH MAGNUM 235 (35.000.AA[01]) - HYDRAULIC SYSTEM, REGULATED PRESSURE (35) - HYDRAULIC SYSTEMS

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

87405121

HYD TUBE,.5" OD

1шт.

5

701-454

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

7

86988829

BRACKET

1шт.

8

701-919

BHD LOCK NUT,1" - 14

1шт.

9

87730802

ACCUMULATOR,0.75L

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

11

87560257

TUBE,0.5" OD

1шт.

12

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

308172A1

TUBE,0.5" OD, 158, 37 mm Length

1шт.

18

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

433589A1

TUBE

1шт.

22

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

384870A1

PLATE

2шт.

25

84187771

TUBE

1шт.

26

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

84359041

TUBE

1шт.

33

322529A1

COUPLING

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

143349A1

DUST CAP

1шт.

36

87413833

CONDUIT

1шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

38

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

39

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

40

84498432

HYDRAULIC VALVE

1шт.
