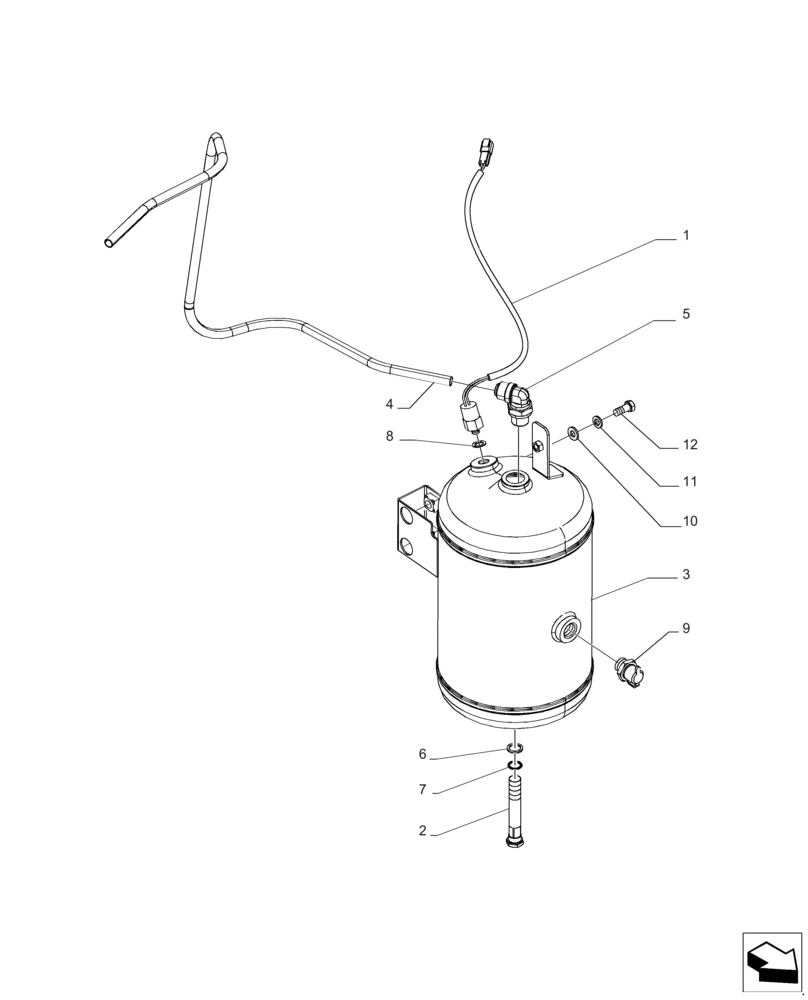

Запчасти Case IH MAGNUM 235 (33.224.BC[02]) - RESERVOIR, AIR BRAKE RH STD (33) - BRAKES & CONTROLS

1

47569031

SENSOR

Pressure 1MPa

1шт.

2

84383334

VALVE

1шт.

3

47766085

RESERVOIR

1шт.

4

47766073

TUBE

1шт.

5

47760911

ADAPTER

1шт.

6

47766617

THRUST WASHER

1шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8

47766635

SEALING WASHER

1шт.

9

47766092

FITTING

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

892-11012

LOCK WASHER,M12

1шт.

12

322590

BOLT,Hex, M12 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.
