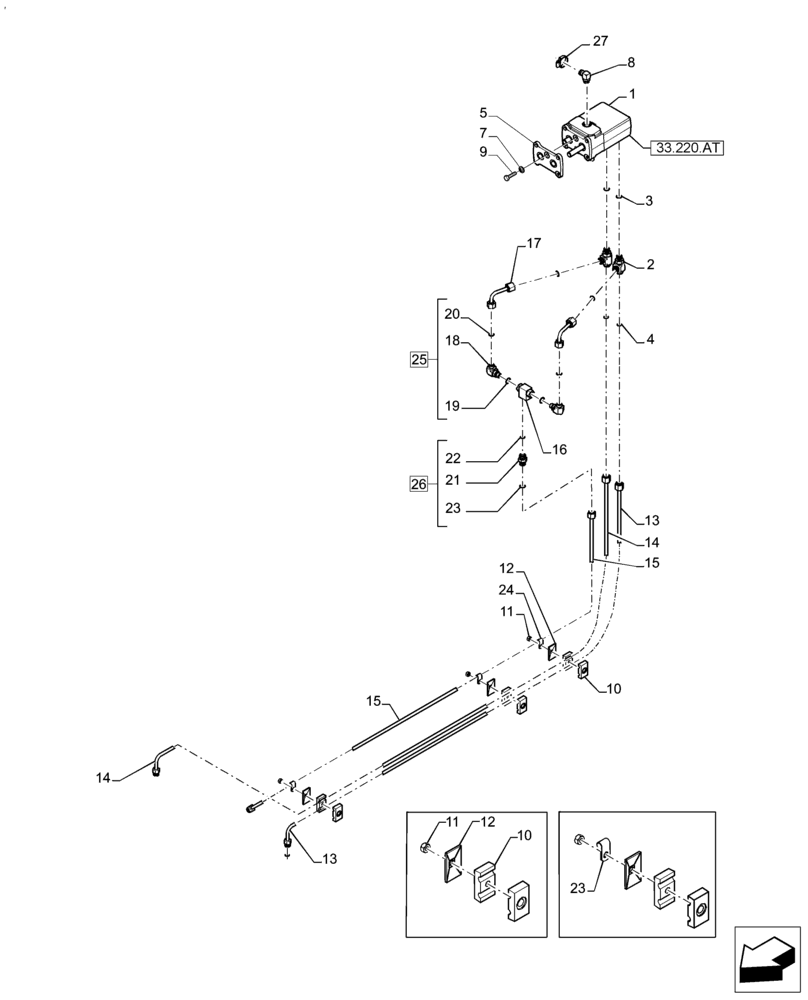

Запчасти Case IH MAGNUM 235 (33.220.AC[03]) - BRAKES, HYDRAULIC SYSTEM, WITH PNEUMATIC TRAILER BRAKES - CANE VERSION (33) - BRAKES & CONTROLS

1

87731065

BRAKE VALVE

Brake

1шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 3, 4

2шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

(1/2 ID x 1/16)

2шт.

5

407142A1

GASKET

Supply

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

8

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1/2ID x M18 X1.5, 90 Degree Hose Barb

1шт.

9

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

10

1546024C1

CLAMP

3шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

12

384870A1

PLATE

3шт.

13

84151822

TUBE

RH Brake

1шт.

14

84249889

TUBE

LH Brake

1шт.

15

84151750

TUBE

1шт.

16

84362467

VALVE,9/16" - 18 x 9/16" - 18

Air Brake Shuttle

1шт.

17

442240A1

TUBE

2шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 25

2шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Hyd Connector, Incl in 26

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

25

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 18 - 20

2шт.

26

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 21 - 23

1шт.

27

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.
