(33.220.AC[02]) - BRAKES, HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES

Запчасти Case IH MAGNUM 235 (33.220.AC[02]) - BRAKES, HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES (33) - BRAKES & CONTROLS

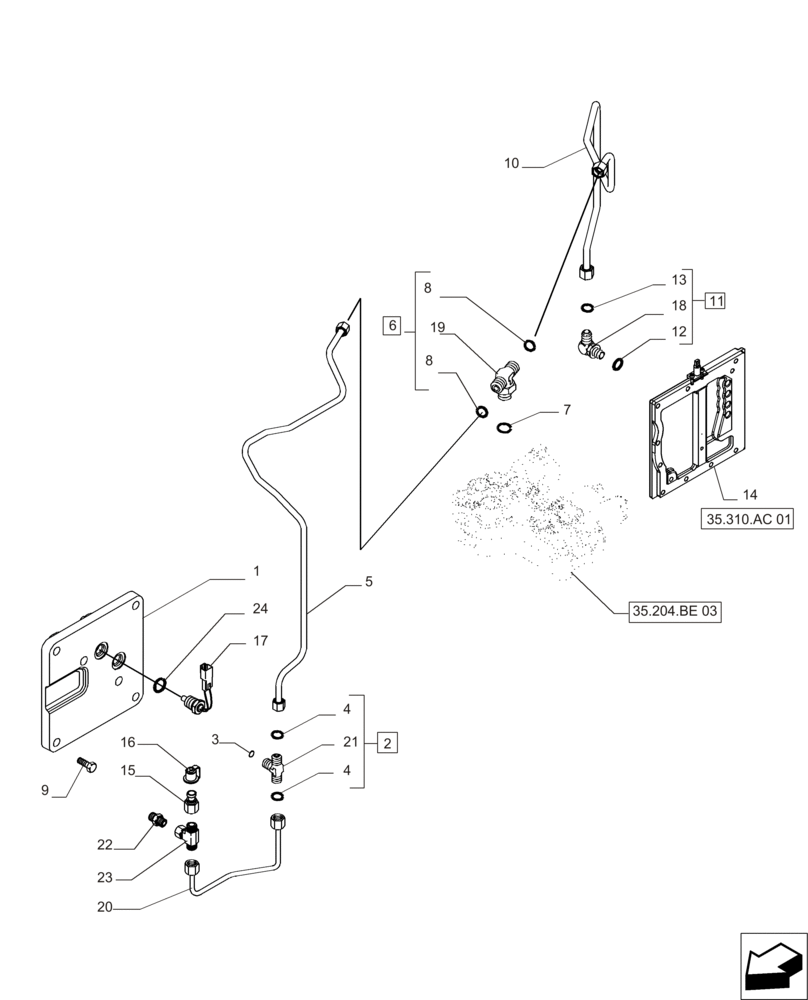

Схема запчастей Case IH MAGNUM 235 - (33.220.AC[02]) - BRAKES, HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES (33) - BRAKES & CONTROLS
4
1
20
11
17
8
35.310.ac 01
18
7
3
19
15
10
2
5
24
35.204.be 03
22
4
21
8
6
12
23
16
14
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

84378861

TUBE

1шт.

6

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 8, 19

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

10

87443736

HYD TUBE,0.375" OD

1шт.

11

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 12, 13, 18

1шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

87433653

PLATE ASSY.

1шт.

15

322529A1

COUPLING

1шт.

16

143349A1

DUST CAP

1шт.

17

87521424

TEMPERATURE SENDER

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

20

84173362

TUBE

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

22

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

23

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

24

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
