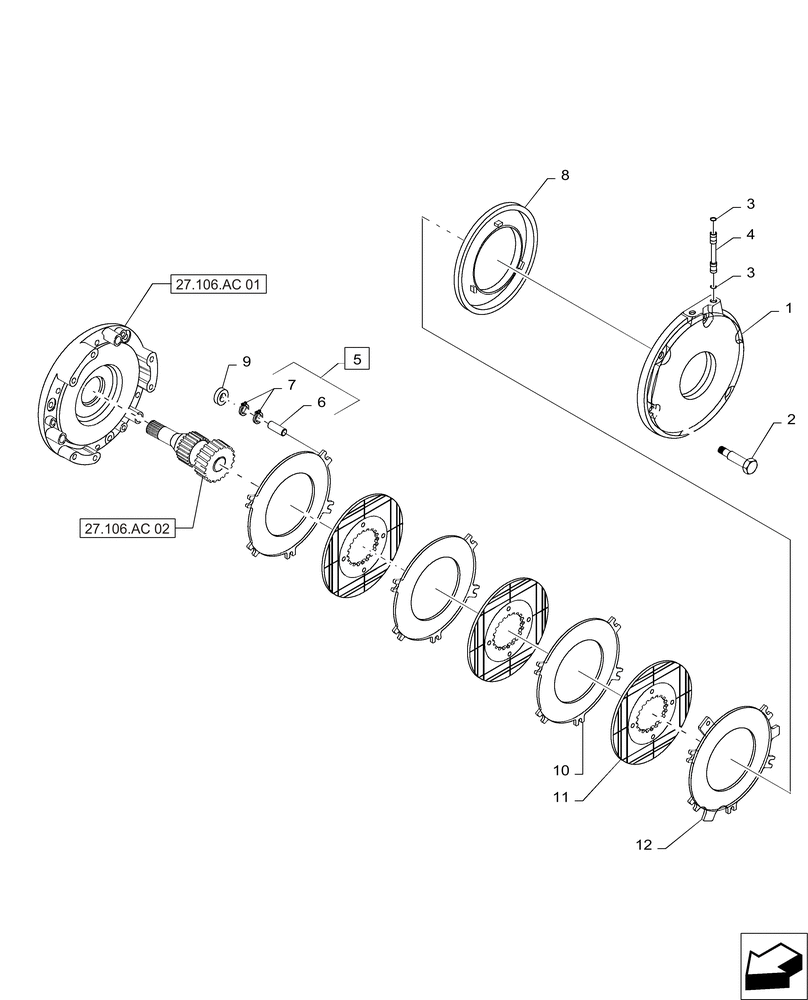

Запчасти Case IH MAGNUM 235 (33.202.AR) - BRAKES, DIFFERENTIAL (33) - BRAKES & CONTROLS

1

1342723C2

COVER

2шт.

2

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

6шт.

3

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

8шт.

4

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

4шт.

5

1349198C1

ADJUSTER

Incl 6, 7

6шт.

6

37-1828

DOWEL,1/2" x 1 3/4"

1шт.

7

100-1450

SNAP RING,#50, Ext

2шт.

8

1997422C1

PISTON

2шт.

9

1342928C1

BELLEVILLE WASHER

12шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

8шт.

11

120488C2

BRAKE PLATE

8шт.

12

1981187C1

PLATE,192mm ID x 317.29mm OD x 2.74mm Thk

2шт.
