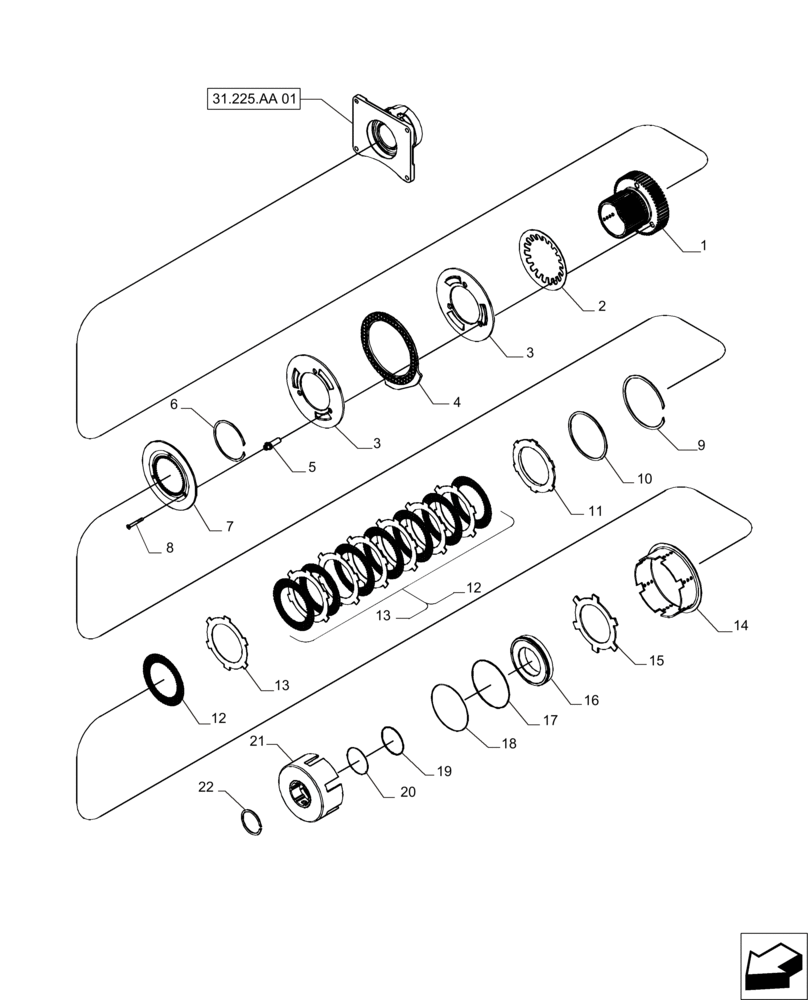

Запчасти Case IH MAGNUM 235 (31.225.AA[02]) - POWER TAKE OFF ASSEMBLY, INPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

87696444

GEAR

1шт.

2

435636A1

SPRING

2шт.

3

435393A2

PLATE

2шт.

4

435892A2

BRAKE DISC,154.5mm ID x 197mm OD x 7.74mm Thk

1шт.

5

87367860

PIN,12.69mm OD x 60mm L

3шт.

6

101-11400

SNAP RING,#400, 3.771, Ext

1шт.

7

87366290

BRAKE DISC,98.63mm ID x 135mm OD x 3.5mm Thk

1шт.

7

87366284

BRAKE DISC,98.63mm ID x 135mm OD x 3mm Thk

1шт.

8

87427330

LOCK BOLT,M6 x 1 x 50mm, Cl 10.9

3шт.

9

1285996C1

SNAP RING,151mm OD, Internal

1шт.

10

87690675

RING,Locking, 97.5mm ID x 106.6mm OD x 4.5mm Thk

1шт.

11

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

12

1997907C1

PLATE

8шт.

13

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

8шт.

14

86989330

TUBE

1шт.

15

435389A1

DISC

1шт.

16

84167245

PISTON

1шт.

17

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

18

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

19

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

1шт.

20

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

21

446596A4

CARRIER

1шт.

22

93350C1

RING

1шт.
