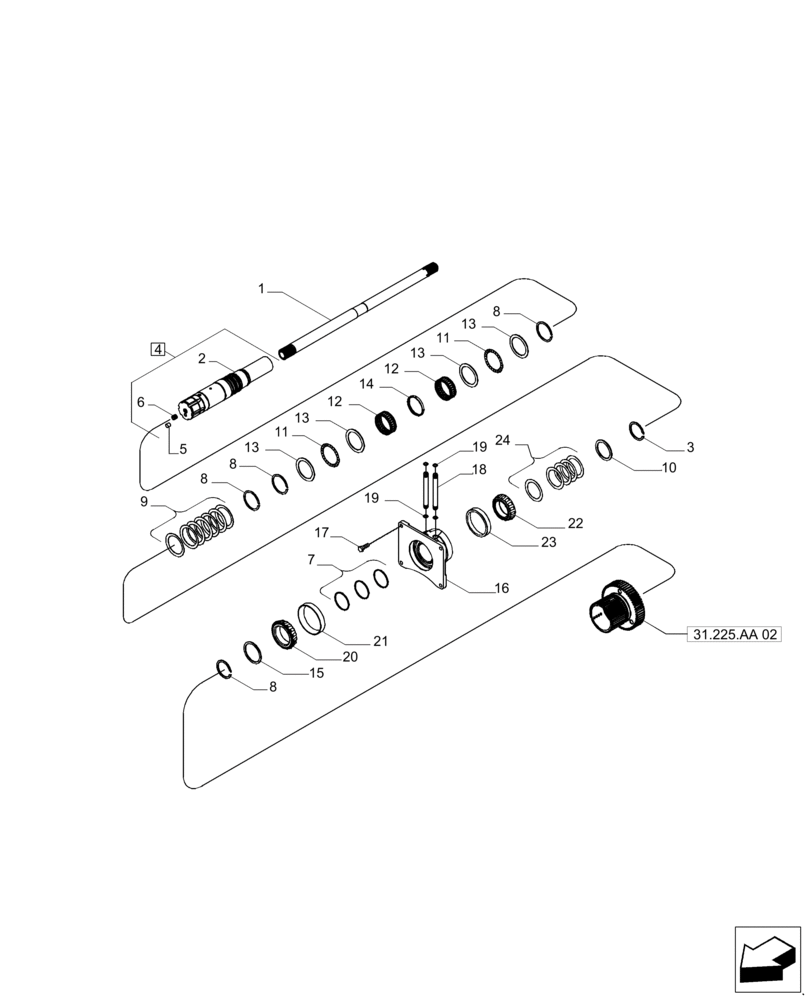

Запчасти Case IH MAGNUM 235 (31.225.AA[01]) - POWER TAKE OFF ASSEMBLY, INPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

84220811

DRIVE SHAFT

980 mm

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 4

1шт.

3

375374R1

RING

1шт.

4

84370500

PTO SHAFT

Incl 2, 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Dowel, Incl in 4

1шт.

6

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

1шт.

7

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

3шт.

8

93350C1

RING

4шт.

9

87425389

BELLEVILLE SPRING

7шт.

10

87427329

SPACER,57.55mm ID x 72mm OD x 3.12mm L

1шт.

11

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

12

435716A1

NEEDLE BEARING,63.49mm ID x 73.04mm OD x 25.21mm W

2шт.

13

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

14

86989332

RING

1шт.

15

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

1шт.

16

87696449

CAGE

1шт.

17

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

18

413665A1

TUBE

2шт.

19

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

4шт.

20

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

1шт.

21

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

1шт.

22

659458R1

ROLLER BEARING,2.25" ID x 0.864"

1шт.

23

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

24

446943A1

SHIM

1шт.

24

249776A1

SHIM,0.203mm Thk

2шт.

24

249777A1

SHIM,0.356mm Thk

2шт.

24

249778A1

SHIM,0.508mm Thk

2шт.

24

249779A1

SHIM,0.559mm Thk

2шт.

24

249780A1

SHIM,0.635mm Thk

2шт.
