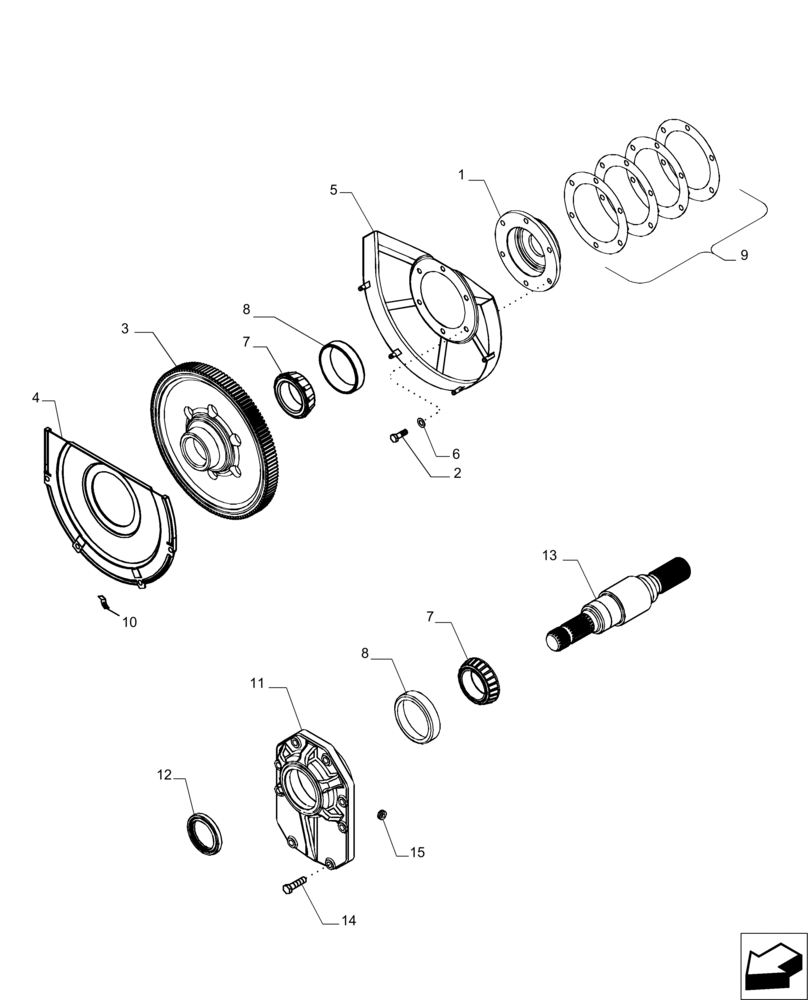

Запчасти Case IH MAGNUM 235 (31.110.AP) - POWER TAKE OFF ASSEMBLY, OUTPUT SHAFT, SINGLE SPEED (31) - IMPLEMENT POWER TAKE OFF

1

444803A2

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

444800A2

DRIVEN GEAR

1шт.

4

225810A1

COVER

1шт.

5

446759A1

SHIELD

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

446268A1

BEARING ASSY,66.67mm ID x 30.05mm W

2шт.

8

446269A1

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

9

445991A1

SHIM KIT

1шт.

10

139327C1

CLIP

4шт.

11

444801A1

COVER

1шт.

12

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

13

444798A2

SHAFT

1шт.

14

87015540

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

15

128209A1

PLUG

2шт.
