(27.120.AF[02]) - REAR AXLE, PLANETARY

Запчасти Case IH MAGNUM 235 (27.120.AF[02]) - REAR AXLE, PLANETARY (27) - REAR AXLE SYSTEM

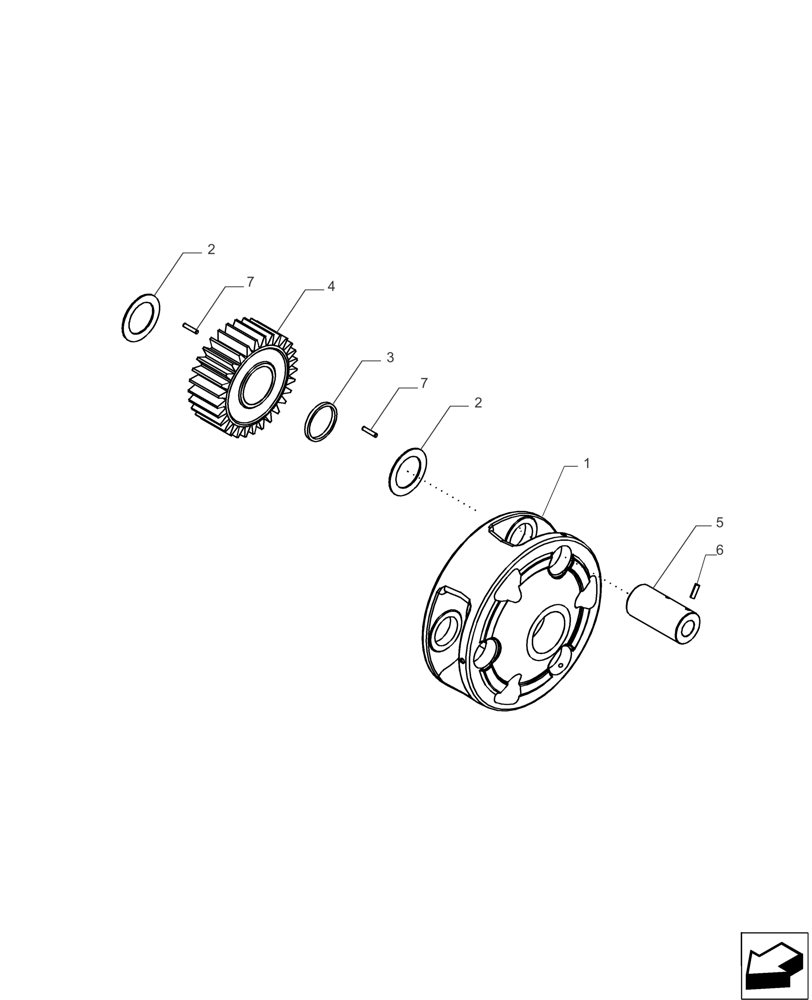

Схема запчастей Case IH MAGNUM 235 - (27.120.AF[02]) - REAR AXLE, PLANETARY (27) - REAR AXLE SYSTEM
2
4
2
5
1
7
6
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

388366A1

PINION CARRIER

Gear

1шт.

2

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

6шт.

3

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

3шт.

4

87738713

PLANETARY GEAR

29T

3шт.

5

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

3шт.

6

47621938

PIN

3шт.

7

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

Выбрано товаров: 7
