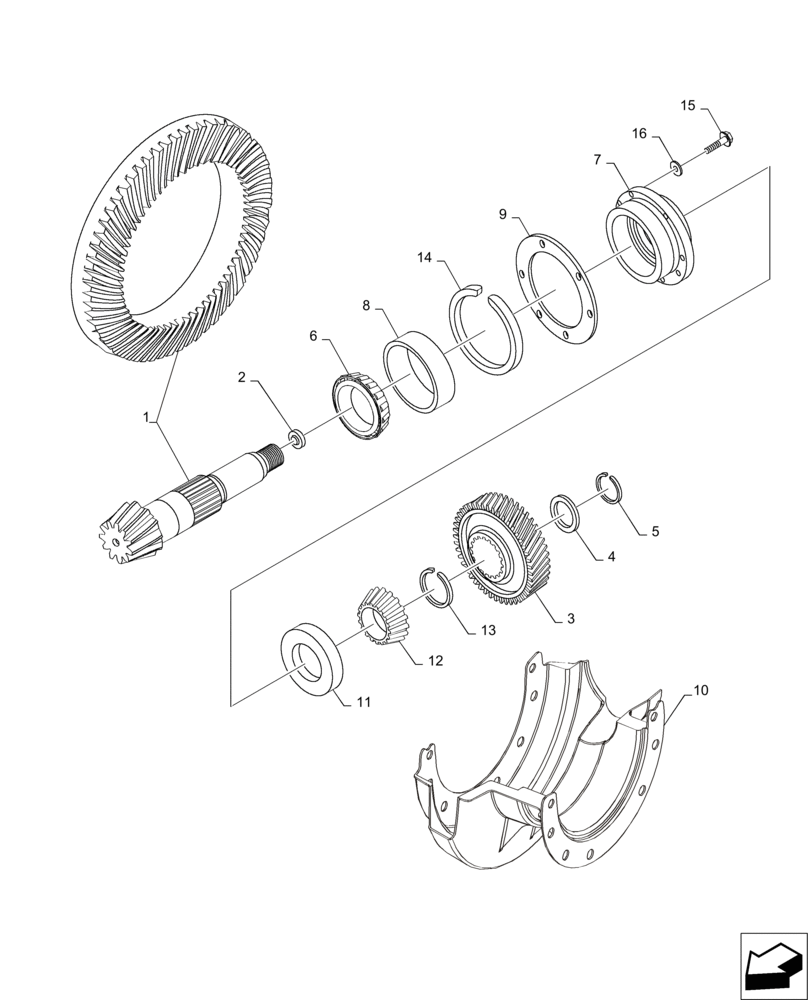

Запчасти Case IH MAGNUM 235 (27.106.AC[11]) - TRANSMISSION, PINION SHAFT & GEARS (27) - REAR AXLE SYSTEM

1

94616C2

BEVEL GEAR

1шт.

2

92825C1

CAP WASHER

1шт.

3

87618938

DRIVEN GEAR

1шт.

4

1286039C1

SPACER

1шт.

5

143906C1

SNAP RING

1шт.

6

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

1шт.

7

1068264C1

BEARING HOUSING

1шт.

8

921683C1

BEARING CUP,5.7087" OD x 1.6535"

1шт.

9

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

2шт.

9

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

2шт.

9

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

2шт.

9

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

2шт.

10

84379827

SHIELD

1шт.

11

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

1шт.

12

94666C1

TAPERED BEARING,73.03mm ID x 30.16mm W

1шт.

13

131432A1

RING,Rtng, Ext, 68.91mm ID x 3.62mm

1шт.

13

94661C1

RING,Rtng, Ext, 68.91mm ID x 3.70mm

1шт.

13

94662C1

RING,Rtng, Ext, 68.91mm ID x 3.78mm

1шт.

13

94663C1

RING,Rtng, Ext, 68.91mm ID x 3.86mm

1шт.

13

110042C1

RING,Rtng, Ext, 68.91mm ID x 3.94mm

1шт.

13

94664C1

RING,Rtng, Ext, 68.91mm ID x 4.02mm

1шт.

13

131433A1

RING,Rtng, Ext, 68.91mm ID x 4.10mm

1шт.

13

131434A1

RING,Rtng, Ext, 68.91mm ID x 4.18mm

1шт.

14

120965C1

SNAP RING

1шт.

15

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

16

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

6шт.
