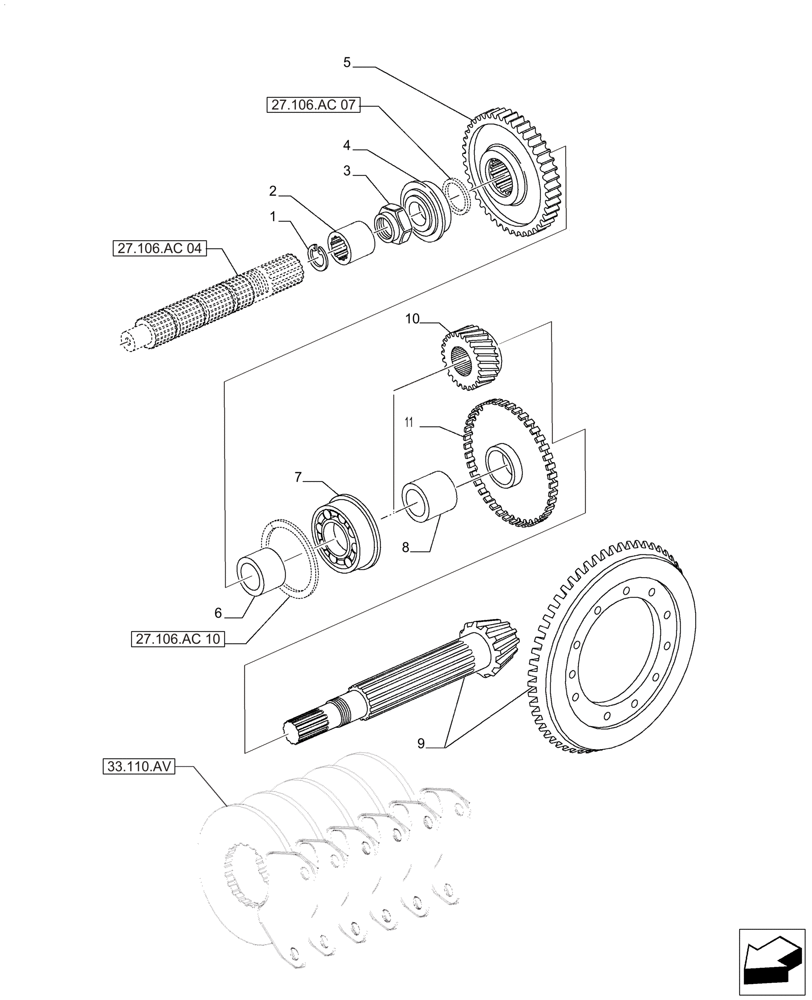

Запчасти Case IH MAGNUM 235 (27.106.AC[05]) - CENTRAL REDUCTION GEAR (27) - REAR AXLE SYSTEM

1

11059776

SNAP RING,M38, Int

1шт.

2

5176850

SLEEVE,20T

1шт.

Mechanical

1шт.

3

5147930

RING NUT,M45 x 1.5

1шт.

4

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

1шт.

5

5171890

GEAR,Z48

1шт.

SPS

1шт.

5

5162724

DRIVEN GEAR,26T, 46T

1шт.

Mechanical

1шт.

6

5145129

SPACER,55mm ID x 70mm OD x 42.5mm L

1шт.

7

5111271

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

1шт.

8

5185558

SPACER,55mm ID x 74mm OD x 79mm L

1шт.

9

87559710

BEVEL GEAR,11/43 Ratio

1шт.

SPS

1шт.

9

5162572

BEVEL GEAR,10/43 Ratio

1шт.

Mechanical

1шт.

10

87677236

PINION,Z29

1шт.

11

5183202

GEAR,Z47

1шт.
