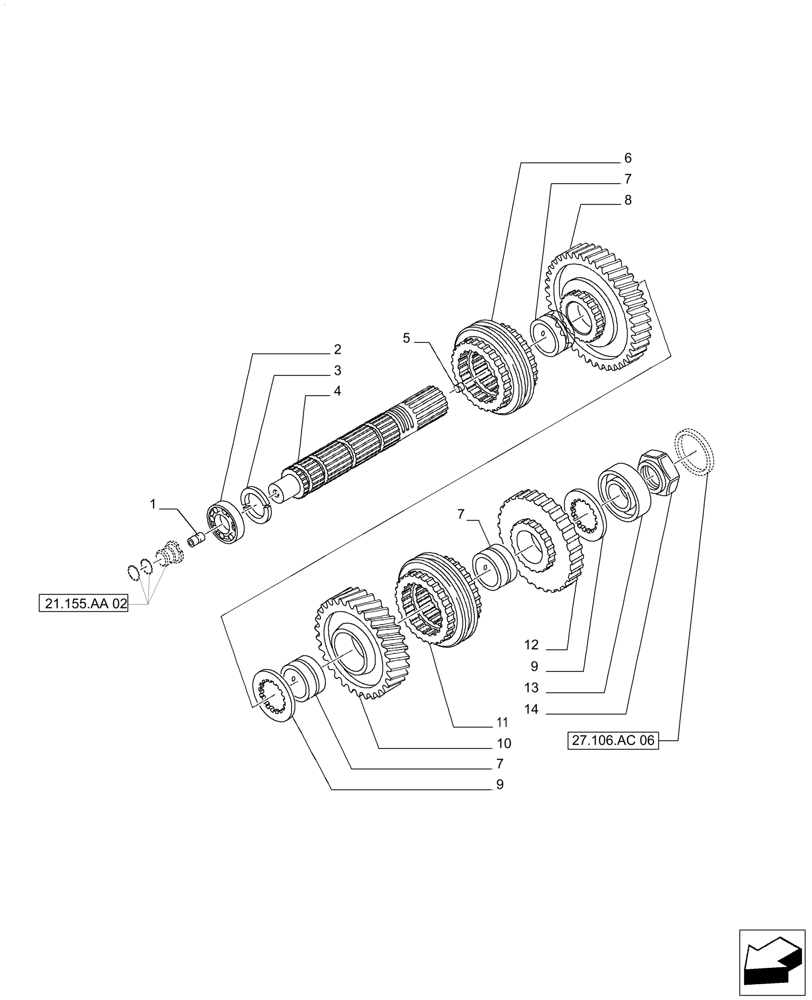

Запчасти Case IH MAGNUM 235 (27.106.AC[04]) - CENTRAL REDUCTION GEAR (27) - REAR AXLE SYSTEM

1

5166038

PIPE

1шт.

2

5180813

ROLLER BEARING,30mm ID x 27mm W

1шт.

3

5169085

RING,44mm ID x 56mm OD x 4mm Thk

2шт.

4

5180850

MAIN SHAFT,20T, 24T

1шт.

5

5125566

DOWEL,M14 x 1.5 x 16mm

1шт.

6

87567127

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

7

5164695

BUSHING,49.4mm ID x 60mm OD x 46.6mm L

3шт.

8

5164727

DRIVEN GEAR,38T, 55T

1шт.

9

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

2шт.

10

5165372

DRIVEN GEAR,37T, 38T

1шт.

11

87537028

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

12

5164729

DRIVEN GEAR,37T, 38T

1шт.

13

5169086

ROLLER BEARING,47.5 mm ID x 100 mm OD x 27.25 mm

1шт.

14

5169091

NUT,Hex Flg, M47.50 x 1.5mm Pitch, 17mm High, LH

1шт.
