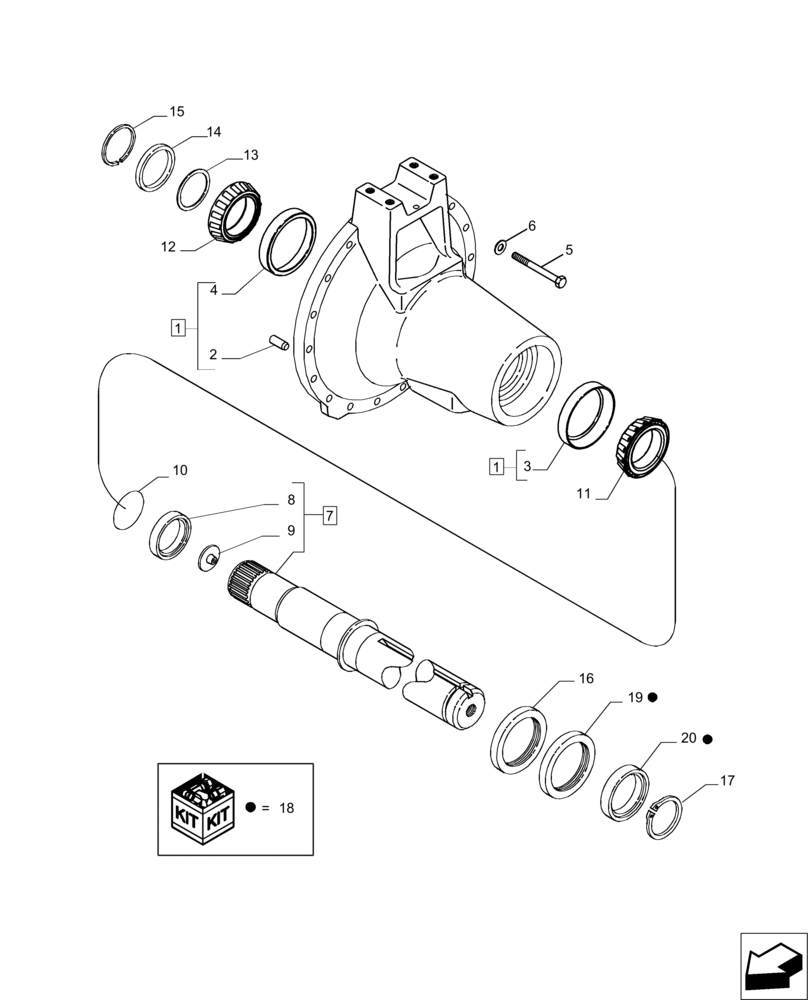

Запчасти Case IH MAGNUM 235 (27.100.AK[01]) - REAR AXLE, 4 X 98 INCH (27) - REAR AXLE SYSTEM

1

87331804

AXLE CARRIER

Incl 2 - 4

2шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

1975500C1

BEARING CUP,180.987 mm OD x 38.15 mm

1шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

5

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

36шт.

6

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

7

1342484C4

REAR AXLE

Incl 8, 9

2шт.

8

1963837C1

BUSHING,104.83mm ID x 132.65mm OD x 18mm L

1шт.

9

1981270C1

INSERT

1шт.

10

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

11

1975499C1

TAPERED BEARING,104.187 mm ID x 47.68 mm

2шт.

12

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

2шт.

13

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

13

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

13

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

13

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

13

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

14

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

2шт.

15

1277020C2

RING

2шт.

16

1963839C1

OIL SEAL

2шт.

17

800-51100

SNAP RING,M100, Ext, Hvy

2шт.

18

1349182C1

SEAL KIT

Incl 19,20

2шт.

19

1349183C1

OIL SEAL

1шт.

20

1349184C1

SLEEVE,132.67mm ID x 142.8mm OD x 23mm L

1шт.
