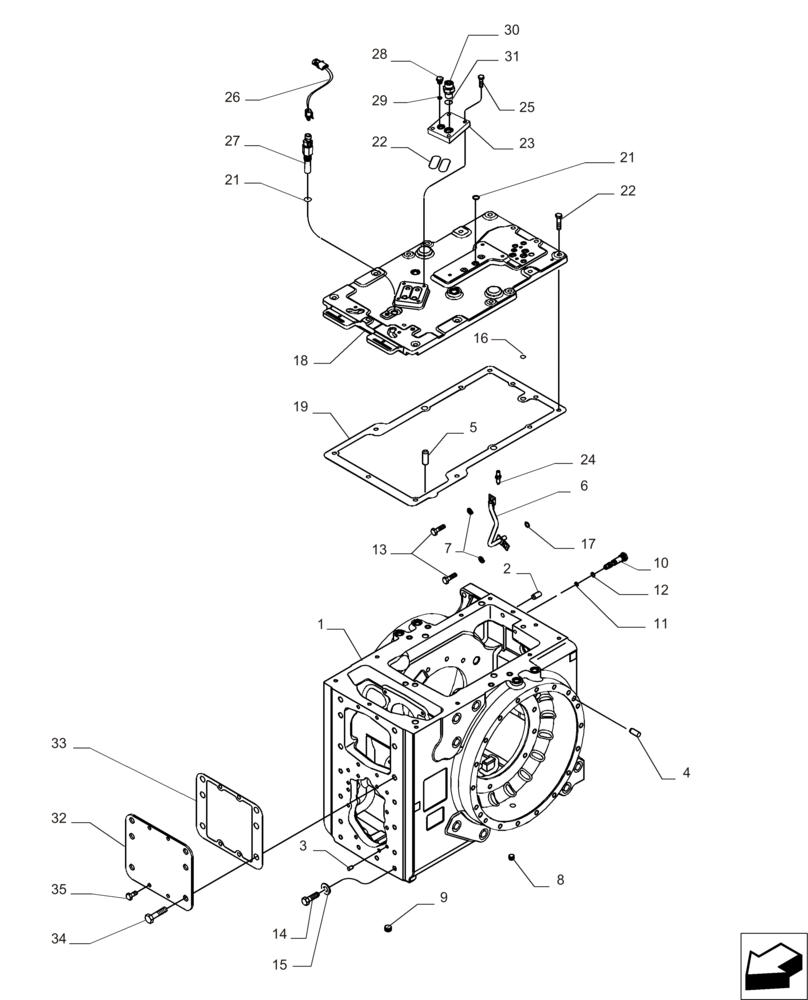

Запчасти Case IH MAGNUM 235 (27.100.AB) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM

1

84385959

HOUSING

Assy

1шт.

2

837-16035

DOWEL,M16 x 35

1шт.

3

837-10020

DOWEL,M10 x 20

2шт.

4

837-16040

DOWEL,M16 x 40

4шт.

5

37-11232

DOWEL,3/4" x 2"

2шт.

6

409741A1

TUBE

1шт.

7

892-11012

LOCK WASHER,M12

1шт.

8

221578A1

PLUG,M18 x 1.5 ORB

3шт.

9

192792A1

PLUG

1шт.

10

411075A1

FITTING

1шт.

11

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

12

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

13

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

14

87698770

LOCK BOLT,M16 x 2 x 80mm, Cl 10.9

10шт.

15

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

16

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

17

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.

18

84365635

COVER

1шт.

19

413900A1

GASKET,0.79mm Thk

1шт.

20

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

15шт.

21

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

4шт.

22

238-6139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

2шт.

23

84239750

HYDRAULIC MANIFOLD

1шт.

24

414320A1

FITTING

1шт.

25

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

26

87631267

WIRE HARNESS

1шт.

27

87548200

SENSOR

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

29

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

1шт.

31

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

32

236602A1

COVER

1шт.

33

379145A2

GASKET,0.79mm Thk

1шт.

34

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

6шт.

35

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.
