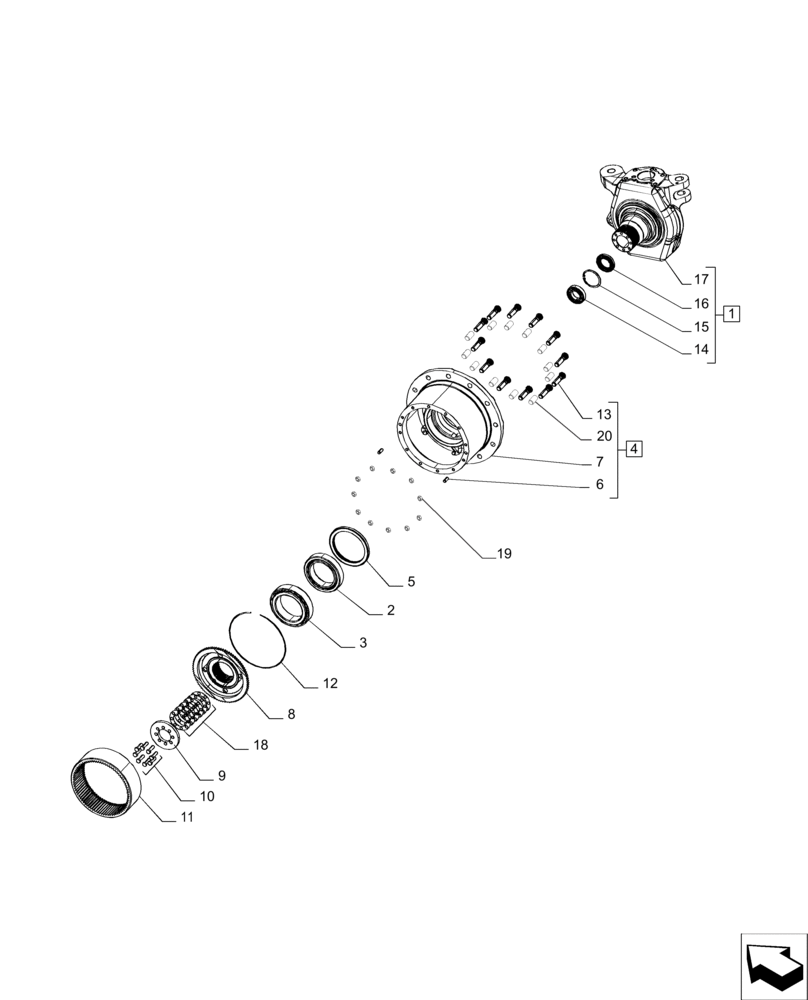

Запчасти Case IH MAGNUM 235 (25.108.AB[04]) - FRONT AXLE, STEERING KNUCKLE - CLASS 4.75 - CNH (25) - FRONT AXLE SYSTEM

1

84345690

KNUCKLE

RH, Incl 14 - 17

1шт.

1

84345686

KNUCKLE,LH

LH, Incl 14 - 17

1шт.

2

84557192

TAPERED BEARING,123.83mm ID x 182.56mm OD x 39.69mm W

1шт.

3

84557189

TAPERED BEARING,133.35mm ID x 196.85mm OD x 46.04mm W

1шт.

4

84347201

HOUSING

ASSY. Incl 6, 7, 13, 20

1шт.

5

87390178

SEAL

1шт.

6

837-12030

DOWEL,M12 x 30mm OAL

2шт.

7

NSS

NOT SOLD SEPARAT

Housing, Wheel Hub, Incl in 4

1шт.

8

84345697

CARRIER

1шт.

9

84338966

RING CARRIER

1шт.

10

87012129

BOLT,Hex, M12 x 40, 10.9, Full Thd

8шт.

11

47538585

RING GEAR

1шт.

12

84346778

RING

1шт.

13

47695821

STUD

12шт.

14

87481950

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

15

800-2185

SNAP RING,M85 x 3, Int

1шт.

16

84397071

SEAL,52mm ID x 85mm OD x 14mm Thk

1шт.

17

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

18

47360644

SHIM

-0.0508

1шт.

18

47360645

SHIM

-0.076

1шт.

18

47360646

SHIM

-0.127

1шт.

18

47360647

SHIM

-0.254

1шт.

18

47360648

SHIM

-0.508

1шт.

18

47360649

SHIM

-0.762

1шт.

19

253212A1

NUT,M20 x 1.5, Class 10

12шт.

20

87555323

PROTECTIVE SLEEVE

12шт.
