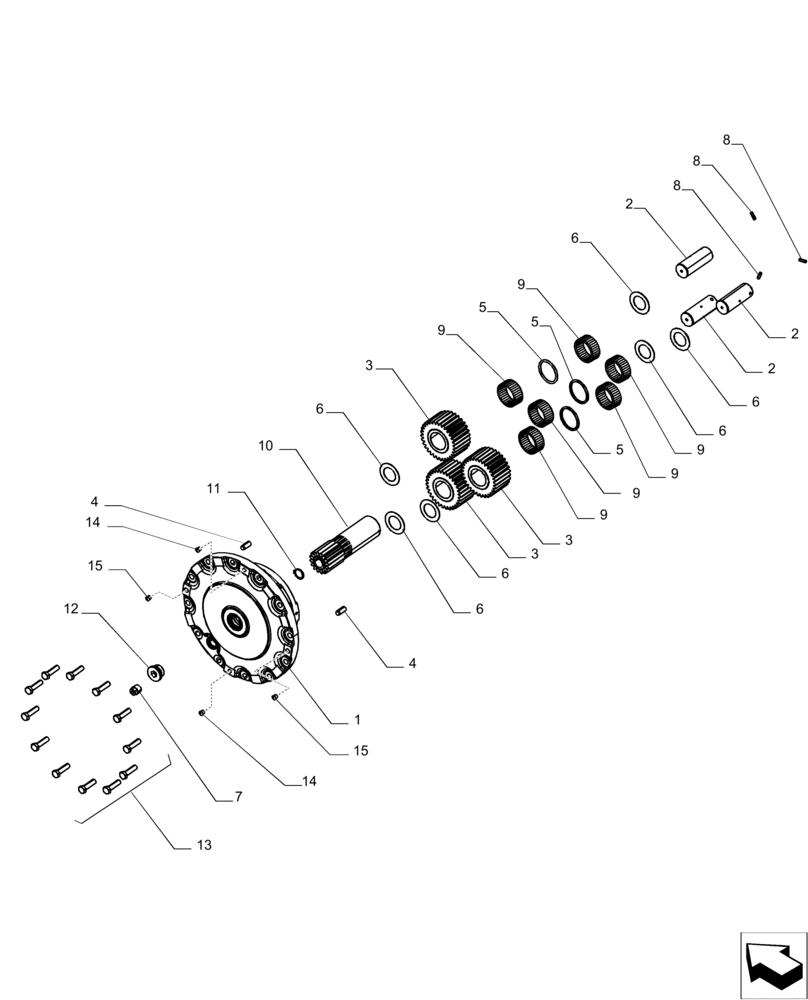

Запчасти Case IH MAGNUM 235 (25.108.AB[03]) - FRONT AXLE, PLANETARY REDUCER - CLASS 4.75 - CNH (25) - FRONT AXLE SYSTEM

1

47365049

CARRIER

1шт.

2

84297776

PIN,38.2mm OD x 103.2mm L

3шт.

3

84345693

GEAR

3шт.

4

837-12030

DOWEL,M12 x 30mm OAL

2шт.

5

47515926

SPACER,40mm ID x 48.05mm OD x 4.8mm L

3шт.

6

87576870

THRUST WASHER

6шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

838-3620

PIN,6mm OD x 20mm L, Coiled

3шт.

9

84297778

BEARING,38.2mm ID x 48.2mm OD x 27.8mm W

162шт.

10

84345699

GEAR

1шт.

11

197297

SNAP RING,#98, Ext

1шт.

12

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

13

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

14

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

15

1533637C1

PLUG

2шт.
