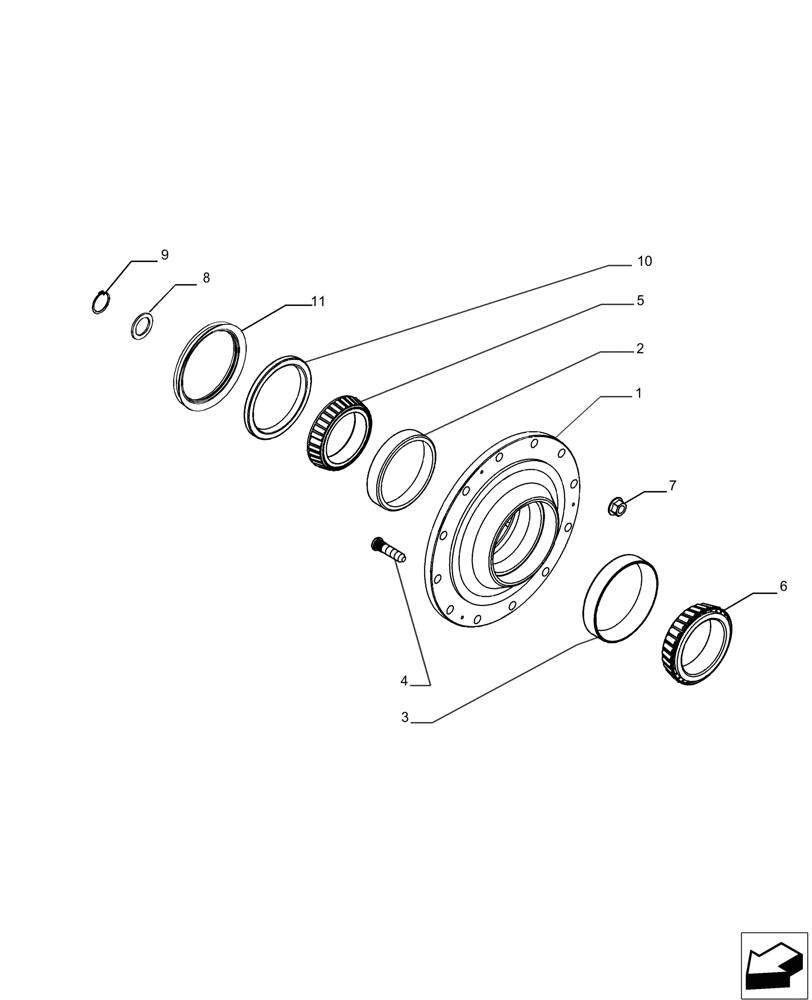

Запчасти Case IH MAGNUM 235 (25.108.AB[01]) - FRONT AXLE PLANETARIES AND HUB, MFD, 12 BOLT HUB - DANA (25) - FRONT AXLE SYSTEM

1

87390163

HUB

2шт.

2

L31698

BEARING CUP

2шт.

3

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

2шт.

4

297495A1

STUD,Wheel Bolt, M20 x 1.5 x 79.5mm

24шт.

5

311042A1

BEARING ASSY,123.83mm ID x 38.1mm W

2шт.

6

135648A1

ROLLER BEARING,133.35mm ID x 46.04mm W

2шт.

7

253212A1

NUT,M20 x 1.5, Class 10

24шт.

8

87403378

THRUST WASHER

1шт.

9

87403379

RING, SNAP

1шт.

10

87390190

SEAL KIT

1шт.

11

87390352

SEAL KIT

1шт.
