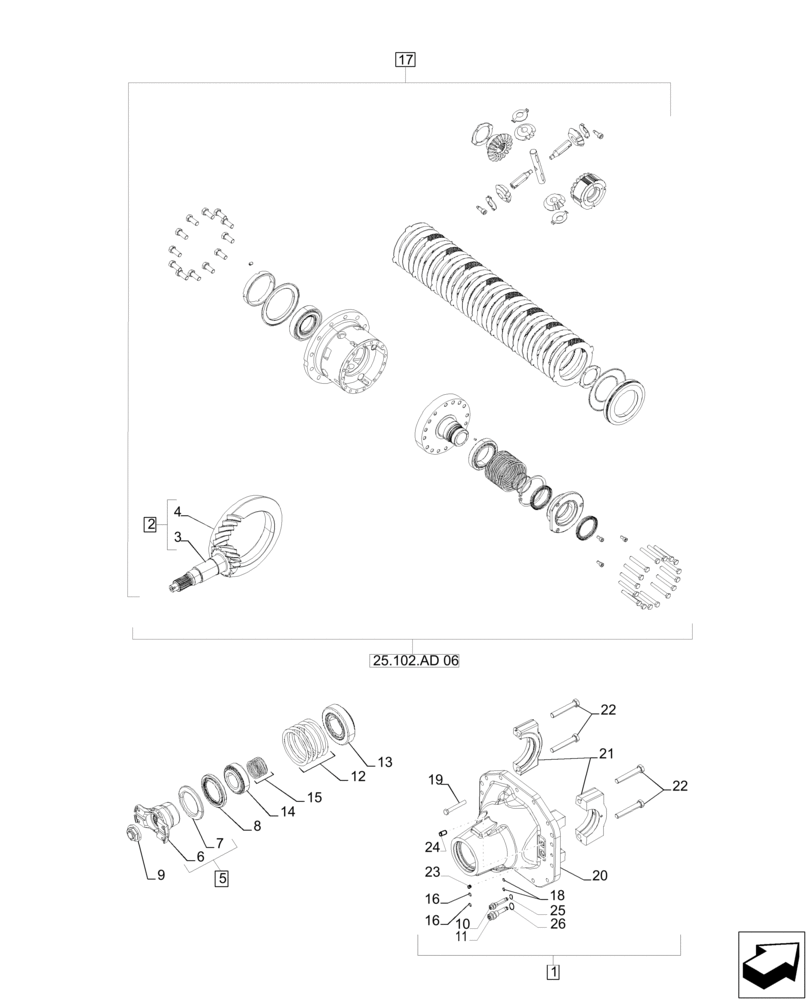

Запчасти Case IH MAGNUM 235 (25.102.AD[07]) - CARRIER & DIFFERENTIAL, CLASS V, STANDARD AND SUSPENDED MFD - CNH (25) - FRONT AXLE SYSTEM

1

47421071

CARRIER

ASSY. Incl 10, 11, 16 - 26

1шт.

2

84331804

BEVEL GEAR

Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pinion, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Crown, Incl in 2

1шт.

5

84379951

YOKE

Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Yoke, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Flange, Incl in 5

1шт.

8

293053A1

OIL SEAL,74.86mm ID x 107.97mm OD x 12mm Thk

1шт.

9

84415818

NUT,M24 x 1.5

1шт.

10

84307666

FITTING,M14 x 1.5 x 75.5mm L

1шт.

11

84586887

FITTING,M18 x 1.5 x 79mm L

1шт.

12

47492129

SHIM

102 x 122 x 0.050

1шт.

12

84297753

SHIM,102mm ID x 122mm OD x 0.5mm Thk

0.5080 mm

1шт.

12

84304127

SHIM,102mm ID x 122mm O x 0.076mm Thk

0.0760 mm

1шт.

12

84304128

SHIM,102mm ID x 122mm OD x 0.13mm Thk

0.1270 mm

1шт.

12

84304129

SHIM,102mm ID x 122mm OD x 0.25mm Thk

0.2540 mm

1шт.

13

47494382

TAPERED BEARING,60mm ID x 125mm OD x 37mm W

1шт.

14

47495678

TAPERED BEARING,48.41mm ID x 95.25mm OD x 30.16mm W

1шт.

15

84540516

SHIM

0.127 mm

1шт.

15

84540515

SHIM

0.076 mm

1шт.

15

84540514

SHIM

0.051 mm

1шт.

15

84306369

SHIM

0.508 mm

1шт.

15

84306372

SHIM

0.762 mm

1шт.

16

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

17

84415797

DIFFERENTIAL ASSY

Incl 2

1шт.

18

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

19

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

14шт.

20

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

2шт.

22

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

23

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

24

837-16030

DOWEL,16mm OD x 30mm L

2шт.

25

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
