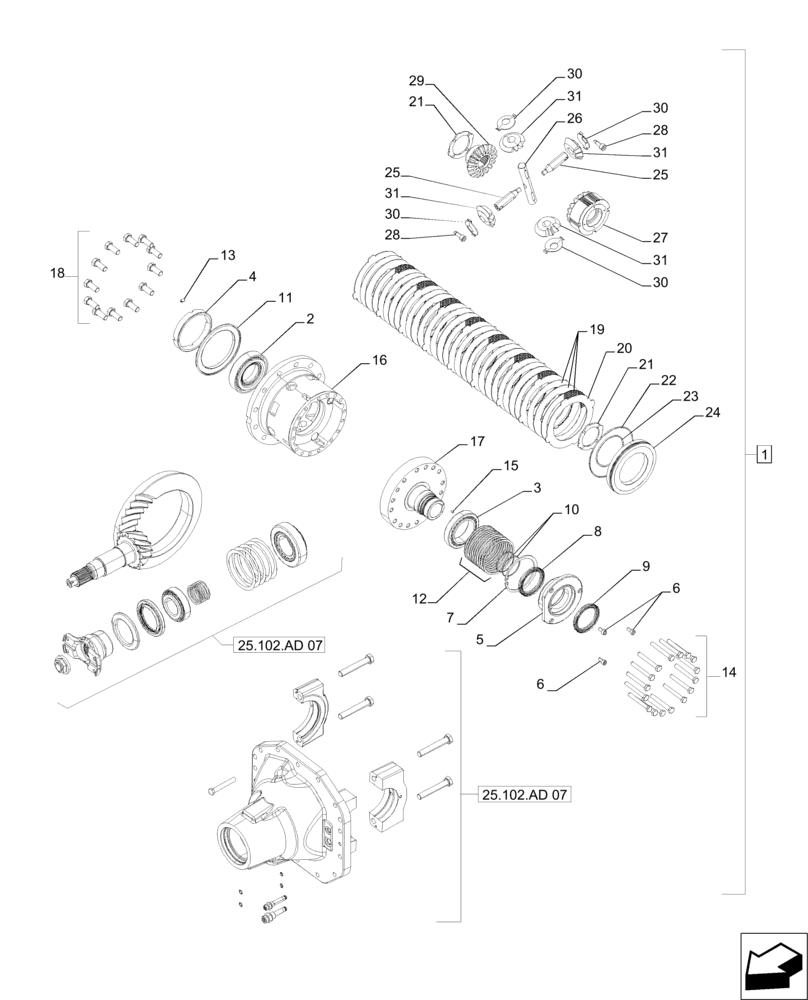

Запчасти Case IH MAGNUM 235 (25.102.AD[06]) - CARRIER & DIFFERENTIAL, CLASS V, STANDARD AND SUSPENDED MFD - CNH (25) - FRONT AXLE SYSTEM

1

84415795

PINION

ASSY. Incl 2 - 31

1шт.

2

84558049

TAPERED BEARING,75mm ID x 120mm OD x 31mm W

1шт.

3

84558087

TAPERED BEARING,70mm ID x 110mm OD x 25mm W

1шт.

4

87544772

RING NUT,M124

1шт.

5

47460977

CARRIER

1шт.

6

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

3шт.

7

11075476

SNAP RING,M110, Int

1шт.

8

84304125

SEAL,67.2mm ID x 88mm OD x 9.45mm Thk

1шт.

9

84304123

SEAL,60.2mm ID x 88mm OD x 9.45mm Thk

1шт.

10

47469215

SEALING RING,Locking, 60.33mm ID x 63.53mm OD x 2.4mm Thk

2шт.

11

84321316

SEAL,120.1mm ID x 160.3mm OD x 13.2mm Thk

1шт.

12

5135019

SHIM,98.8mm ID x 109.8mm OD x 1mm Thk

1шт.

12

5135020

SHIM,98.8mm ID x 109.8mm OD x 1.1mm Thk

1шт.

12

5135021

SHIM,98.8mm ID x 109.8mm OD x 1.2mm Thk

1шт.

12

5135022

SHIM,98.8mm ID x 109.8mm OD x 1.3mm Thk

1шт.

12

5135023

SHIM,98.8mm ID x 109.8mm OD x 1.4mm Thk

1шт.

12

5135024

SHIM,98.8mm ID x 109.8mm OD x 1.5mm Thk

1шт.

12

5135025

SHIM,98.8mm ID x 109.8mm OD x 1.6mm Thk

1шт.

12

5135026

SHIM,98.8mm ID x 109.8mm OD x 1.7mm Thk

1шт.

12

5135027

SHIM,98.8mm ID x 109.8mm OD x 1.8mm Thk

1шт.

12

5135028

SHIM,98.8mm ID x 110mm OD x 1.9mm Thk

1шт.

12

5135029

SHIM,2mm Thk

1шт.

13

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

1шт.

14

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

16шт.

15

87373620

PLUG,2.2mm ID x 4.9mm OD

1шт.

16

84566858

HOUSING

1шт.

17

47403859

COVER

1шт.

18

47566048

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

12шт.

19

84415804

PLATE,107.42mm ID x 166mm OD x 2.77mm Thk

ASSY.

8шт.

20

84415806

PLATE

9шт.

21

84321230

WASHER,61mm ID x 84/91mm OD x 3.5mm Thk

2шт.

22

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

1шт.

23

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

24

84415808

PISTON,100.1mm ID x 161.88mm OD x 5.2mm Thk

1шт.

25

47521910

PIN,11.99mm OD x 86.5mm L

2шт.

26

47521909

PIN,21.96mm OD x 153mm L

1шт.

27

47384782

DIFFERENTIAL GEAR,18/25T

1шт.

28

84415812

SCREW,M10 x 1.5 x 29mm, Cl 8.8

2шт.

29

47384785

DIFFERENTIAL GEAR,18/25T

1шт.

30

84266205

THRUST WASHER,22mm ID x 49mm OD x 1.5mm Thk

4шт.

31

87553914

GEAR,11T

4шт.
