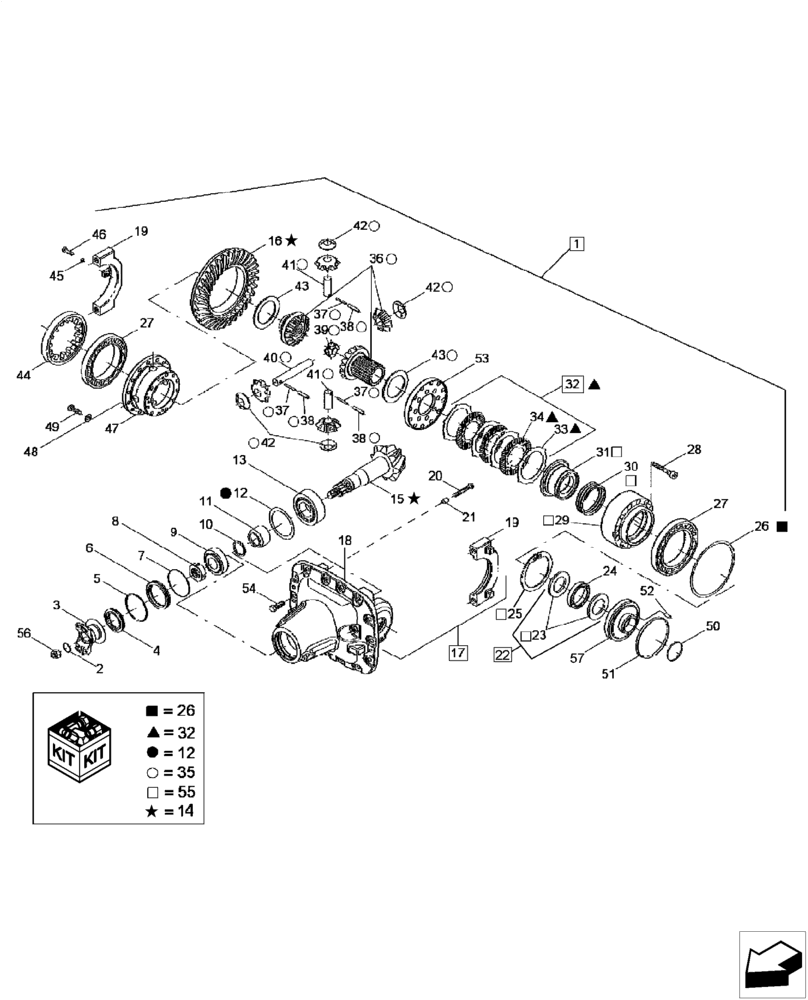

Запчасти Case IH MAGNUM 235 (25.102.AD[05]) - CARRIER & DIFFERENTIAL, CLASS V, STANDARD AND SUSPENDED MFD - DANA (25) - FRONT AXLE SYSTEM

1

87674546

DIFFERENTIAL ASSY

Incl 2 - 56

1шт.

2

84228381

O-RING,Square, 3mm Thk x 34.2mm ID

1шт.

3

87484216

YOKE

ASSY.

3шт.

4

84516682

OIL SEAL

Pinion Yoke

1шт.

5

87681821

SNAP RING

1шт.

6

84516682

OIL SEAL

SEALRING

1шт.

7

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

8

87725293

NUT

Pinion Shaft

1шт.

9

87674552

BALL BEARING

Pinion Tail

1шт.

10

84228385

SPACER

Tail Bearing

1шт.

11

87674553

SPACER

Pinion Shaft

1шт.

12

87681221

SHIM KIT

Head Bearing

1шт.

13

87674554

BALL BEARING

Pinion Head

1шт.

14

87725292

GEAR, BEVEL

Set, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft Pinion, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Gear, Incl in 14

1шт.

17

87674556

CARRIER

Housing Assy, Incl 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Housing, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

Cap, Incl in 17

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt, Incl in 17

1шт.

21

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 17

1шт.

22

87494905

BEARING ASSY

Washer and Bearing, Incl 23, 24

1шт.

23

87674562

THRUST WASHER

Washer, Incl in 22, 55

2шт.

24

NSS

NOT SOLD SEPARAT

Flange, Incl in 22

1шт.

25

370010

SNAP RING,M100, External

1шт.

26

87681222

SHIM KIT

Differential Bearing

1шт.

27

87674564

BALL BEARING

2шт.

28

87675516

SCREW,M12 x 1.25 x 90mm, Cl 12.9

12шт.

29

87674565

COVER

1шт.

30

87674566

SPRING

Return

1шт.

31

87674567

FLANGE

Engagement

1шт.

32

87674568

CLUTCH PACK

Incl 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

Plate, Incl in 32

1шт.

34

NSS

NOT SOLD SEPARAT

Disc, Incl in 32

1шт.

35

87681223

KIT

Incl 36 - 43

1шт.

36

NSS

NOT SOLD SEPARAT

Gear, Incl in 35

1шт.

37

87675517

PIN,5mm OD x 70mm L, Slotted

3шт.

38

412071

LOCK PIN,8mm OD x 70mm L, Slotted

3шт.

39

NSS

NOT SOLD SEPARAT

Spider, Incl in 35

1шт.

40

NSS

NOT SOLD SEPARAT

Shaft, Incl in 35

1шт.

41

NSS

NOT SOLD SEPARAT

Shaft, Incl in 35

1шт.

42

87674571

BELLEVILLE WASHER

Differential Gear

4шт.

43

87674570

THRUST WASHER

Side Gear

2шт.

44

87674572

BEARING LOCK NUT

Bearing Support

1шт.

45

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

46

87712558

BOLT

Bearing Retainer

1шт.

47

87674573

HOUSING

Differential

1шт.

48

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

14шт.

49

87672198

BOLT

14шт.

50

87674558

SEAL

Small

1шт.

51

87674560

SEAL

Large

1шт.

52

10337510

DOWEL,M8 x 20

1шт.

53

87674569

FLANGE

Reaction

1шт.

54

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

14шт.

55

84190656

KIT

Differentail Spring Assy. Incl 23, 25, 29 - 31

1шт.

56

87725294

NUT

1шт.

57

87674561

PISTON

Lock

1шт.
