(25.102.AD[02]) - DIFFERENTIAL AND HOUSING, 12 BOLTS HUB, MFD - DANA

Запчасти Case IH MAGNUM 235 (25.102.AD[02]) - DIFFERENTIAL AND HOUSING, 12 BOLTS HUB, MFD - DANA (25) - FRONT AXLE SYSTEM

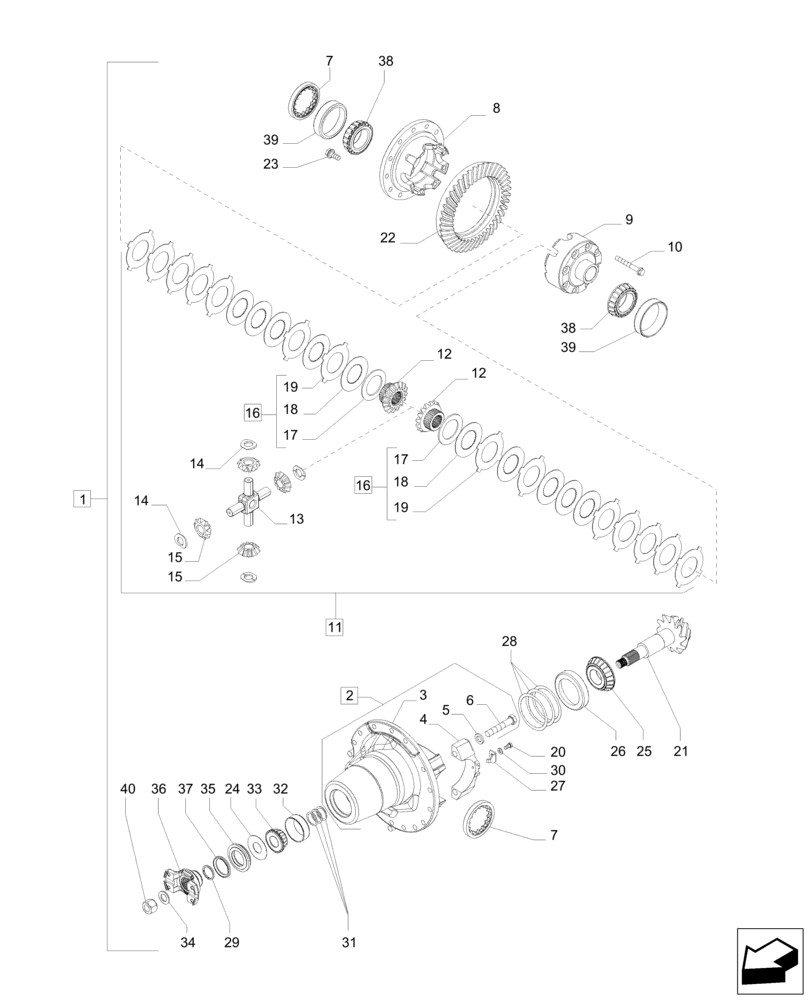

Схема запчастей Case IH MAGNUM 235 - (25.102.AD[02]) - DIFFERENTIAL AND HOUSING, 12 BOLTS HUB, MFD - DANA (25) - FRONT AXLE SYSTEM
5
8
39
32
39
29
7
7
20
38
11
10
14
31
19
18
23
6
4
2
22
12
15
19
16
27
28
35
26
14
30
17
38
25
16
37
13
24
9
33
34
40
12
18
36
1
3
21
15
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87324564

DIFFERENTIAL

Assy, Incl 2 - 50

1шт.

2

87324561

CARRIER

Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cap, Incl in 2

2шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

7

1277233C1

RING NUT,14T

2шт.

345688A4

DIFFERENTIAL

Incl 8 - 19

1шт.

8

NSS

NOT SOLD SEPARAT

Flange, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

10

1997853C1

BOLT

8шт.

11

377176A3

KIT

Incl 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

Gear, Incl in 11

2шт.

13

NSS

NOT SOLD SEPARAT

Shaft, Incl in 11

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Thrust, Incl in 11

4шт.

15

NSS

NOT SOLD SEPARAT

Gear, Incl in 11

4шт.

16

377177A3

KIT

Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Washer, Thrust, Incl in 16

2шт.

18

NSS

NOT SOLD SEPARAT

Disc, Friction, Incl in 16

10шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 16

14шт.

20

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

87324538

GEAR, BEVEL

Incl 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft, Pinion, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Gear, Incl in 1

1шт.

23

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

12шт.

24

87324540

SLINGER

1шт.

25

87324516

BEARING ASSY,44.45mm ID x 26.91mm W

1шт.

26

87324517

BEARING CUP,111.13mm OD x 20.64mm W

1шт.

27

1277234C1

CLIP

2шт.

87324518

SHIM KIT

Incl 28

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.076 mm

5шт.

28

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.127 mm

5шт.

28

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.254 mm

5шт.

29

251189A1

SPACER

1шт.

30

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

87324536

SHIM KIT

Incl 31

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.254 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.356 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.381 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.406 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.457 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.508 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.533 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.559 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.584 mm

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM, ADJUSTING, 0.762 mm

1шт.

32

87324532

BEARING CUP,73.03mm OD x 23.02mm W

1шт.

33

87324534

BEARING ASSY,40.00mm ID x 33.00mm W

1шт.

34

87324523

WASHER,22.6mm ID x 38.1mm OD x 3.04mm Thk

1шт.

35

87324542

OIL SEAL

ASSY.

1шт.

36

87324528

YOKE

Incl 37

1шт.

37

87324547

SEAL,47.74mm ID x 61.9mm OD x 6.35mm Thk

1шт.

38

1968291C1

ROLLER BEARING

2шт.

39

1968292C1

BEARING

2шт.

40

87324520

NUT

1шт.

Выбрано товаров: 55
