(25.102.AD[01]) - MFD AXLE HOUSING ASSEMBLY, STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK - DANA

Запчасти Case IH MAGNUM 235 (25.102.AD[01]) - MFD AXLE HOUSING ASSEMBLY, STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK - DANA (25) - FRONT AXLE SYSTEM

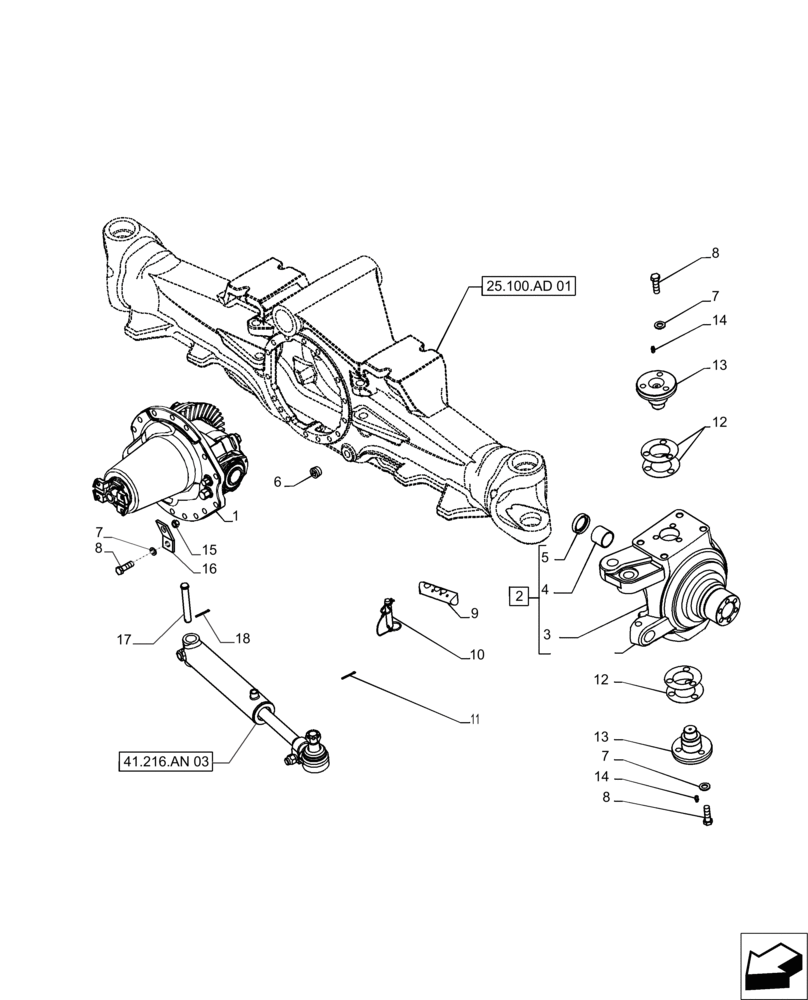

Схема запчастей Case IH MAGNUM 235 - (25.102.AD[01]) - MFD AXLE HOUSING ASSEMBLY, STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK - DANA (25) - FRONT AXLE SYSTEM
3
13
12
5
8
25.100.ad 01
4
10
18
15
16
14
8
11
7
7
41.216.an 03
7
9
6
13
17
8
14
2
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87324564

DIFFERENTIAL

1шт.

2

292560A2

STEERING KNUCKLE,LH

Incl 3 - 5

1шт.

2

292564A2

STEERING KNUCKLE,RH

Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

STEERING KNUCKLE, INCL IN 2

2шт.

4

235628A1

BUSHING

2шт.

5

128647A1

OIL SEAL

2шт.

6

221-887

PLUG

2шт.

7

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

28шт.

8

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

28шт.

9

281914A1

ROD

2шт.

9

87368673

ADJUSTMENT ROD

2шт.

10

87404993

AXLE PIN

2шт.

11

353-77

PLUG,Cap, .576" OD

8шт.

12

313557A1

SHIM KIT

5шт.

13

378410A1

CAP

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

15

86639238

NUT,Weld, M8

1шт.

16

352782A1

STRAP

1шт.

17

292565A1

PIN,22.25mm OD x 155mm L

2шт.

18

733-4032

COTTER PIN,M4 x 32

2шт.
