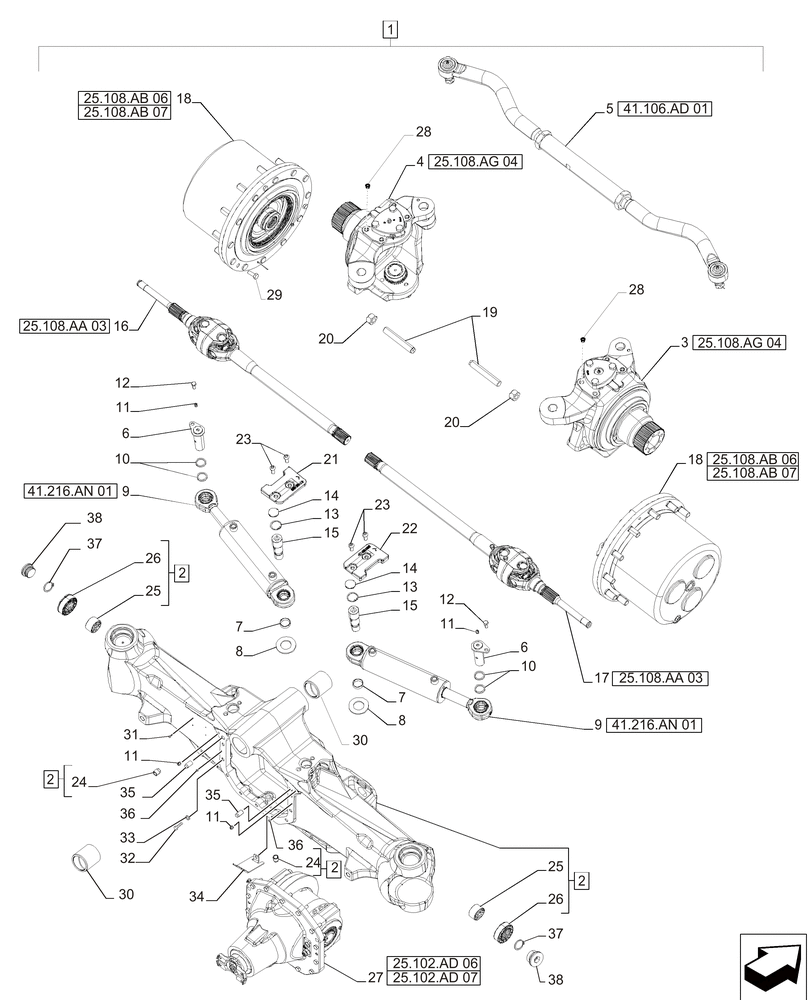

Запчасти Case IH MAGNUM 235 (25.100.AD[05]) - FRONT AXLE ASSEMBLY, CLASS V, STANDARD AND SUSPENDED MFD - CNH (25) - FRONT AXLE SYSTEM

1

84327626

AXLE

ASSY. Front, Incl 2 - 38

1шт.

2

84297738

BEAM

ASSY. Incl 24 - 26

1шт.

3

NSS

NOT SOLD SEPARAT

Wheel, End ASSY. RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Wheel, End ASSY. LH, Incl in 1

1шт.

5

84337044

ROD

1шт.

6

87554183

PIN,34.99mm OD x 115mm L

2шт.

7

87554181

SPACER,35.5mm ID x 39.5mm OD x 12.5mm L

2шт.

8

47359976

WASHER,41mm ID x 76mm OD x 4.76mm Thk

2шт.

9

84336641

STEERING CYLINDER,36mm Rod, 246mm Stroke

ASSY.

2шт.

10

87554192

SPACER,35.5mm ID x 43mm OD x 8mm L

4шт.

11

13407211

LUBE NIPPLE,M10 x 1

4шт.

12

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

800-2140

SNAP RING,M40, Int

2шт.

14

84315411

COVER

2шт.

15

47384884

PIN,39.73mm OD x 123.2mm L

2шт.

16

84415817

SHAFT

1шт.

17

84415816

SHAFT

1шт.

18

NSS

NOT SOLD SEPARAT

Carrier, Planetary, ASSY. Incl in 1

2шт.

19

84530771

ADJUSTMENT SCREW,M24 x 3 x 154mm L

2шт.

20

829-1424

NUT,M24, Cl 10

2шт.

21

47615228

STOP

LH

1шт.

22

47615227

STOP

RH

1шт.

23

47443987

HEX SOC SCREW,BTN HD, M12 x 30mm, Cl 10.9

4шт.

24

1533637C1

PLUG

2шт.

25

84411553

BUSHING,50mm ID x 55mm OD x 30mm L

2шт.

26

84416409

SEAL,50mm ID x 80mm OD x 27.5mm Thk

2шт.

27

NSS

NOT SOLD SEPARAT

Pinion ASSY. Incl in 1

1шт.

28

353-77

PLUG,Cap, .576" OD

8шт.

29

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

30

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

2шт.

31

301-1434

DRIVE SCREW,Drive, #6 x 1/4"

4шт.

32

47632825

BOLT,Hex, M12 x 45mm, Cl 10.9

14шт.

33

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

34

47468806

SHIELD

1шт.

35

837-16030

DOWEL,16mm OD x 30mm L

2шт.

36

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

37

197297

SNAP RING,#98, Ext

2шт.

38

221527A1

PLUG,Hex Soc, M33 x 2, ORB

2шт.
