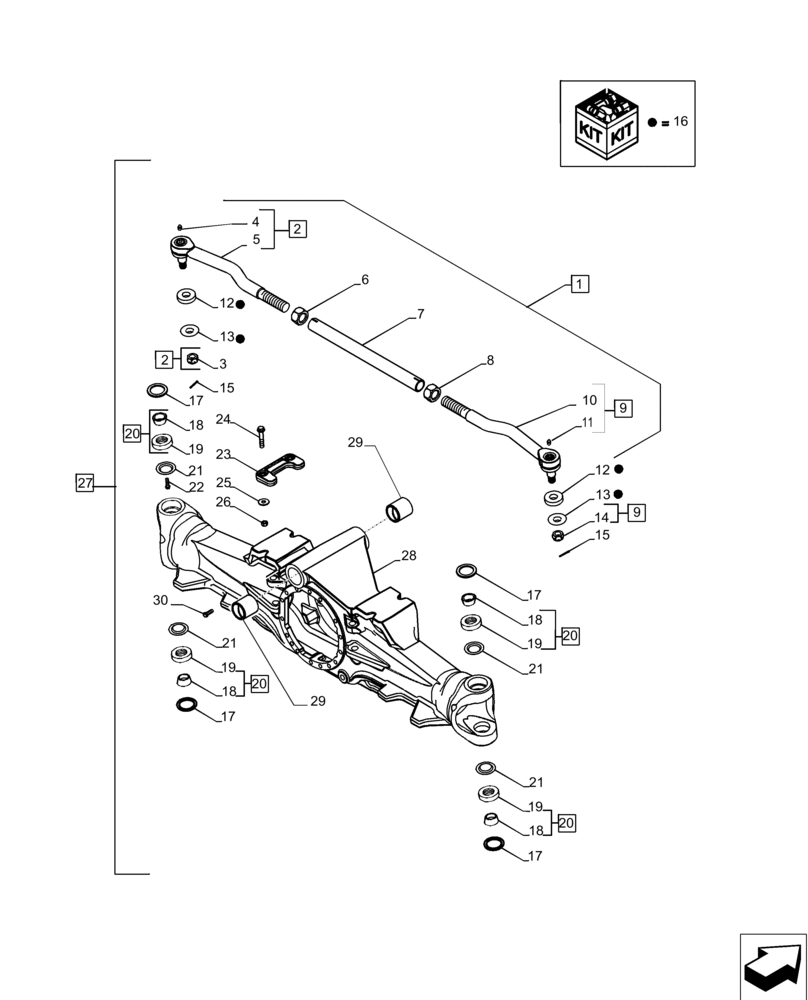

Запчасти Case IH MAGNUM 235 (25.100.AD[01]) - MFD AXLE HOUSING ASSEMBLY, STANDARD WITH 12 BOLT HUB, WITHOUT DIFFERENTIAL LOCK - DANA (25) - FRONT AXLE SYSTEM

1

87455736

STEERING ASSY

Incl 2 - 11

1шт.

2

87455743

BALL JOINT

Incl 3 - 5 - Right Hand

1шт.

3

87455806

NUT

1шт.

4

87455807

FITTING

1шт.

5

NSS

NOT SOLD SEPARAT

Tie-rod, Incl in 2

1шт.

6

87455739

NUT

Right Hand

1шт.

7

87455737

TUBE

1шт.

8

87455741

NUT

Left Hand

1шт.

9

87455742

BALL JOINT

Incl 10, 11, 14 - Left Hand

1шт.

10

NSS

NOT SOLD SEPARAT

Tie-rod, Incl in 9

1шт.

11

87455807

FITTING

1шт.

12

NSS

NOT SOLD SEPARAT

Washer, Incl in 29

2шт.

13

NSS

NOT SOLD SEPARAT

Washer, Incl in 29

2шт.

14

87455806

NUT

1шт.

15

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

16

87455748

KIT

Incl 12, 13

1шт.

17

281939A1

OIL SEAL

4шт.

18

NSS

NOT SOLD SEPARAT

Bearing, Inner, Incl in 9

1шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Outer, Incl in 9

1шт.

20

368728A1

BEARING ASSY,38.1mm ID x 82.55mm OD x 26.99mm W

Incl 18, 19

4шт.

21

281937A1

RETAINER,50mm ID x 80mm OD

4шт.

22

615-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

23

297333A2

BLOCK ASSY.

2шт.

24

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

4шт.

25

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

26

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

4шт.

27

87454945

AXLE

Incl 1 - 28

1шт.

28

87404249

HOUSING

1шт.

29

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

2шт.

30

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

2шт.
