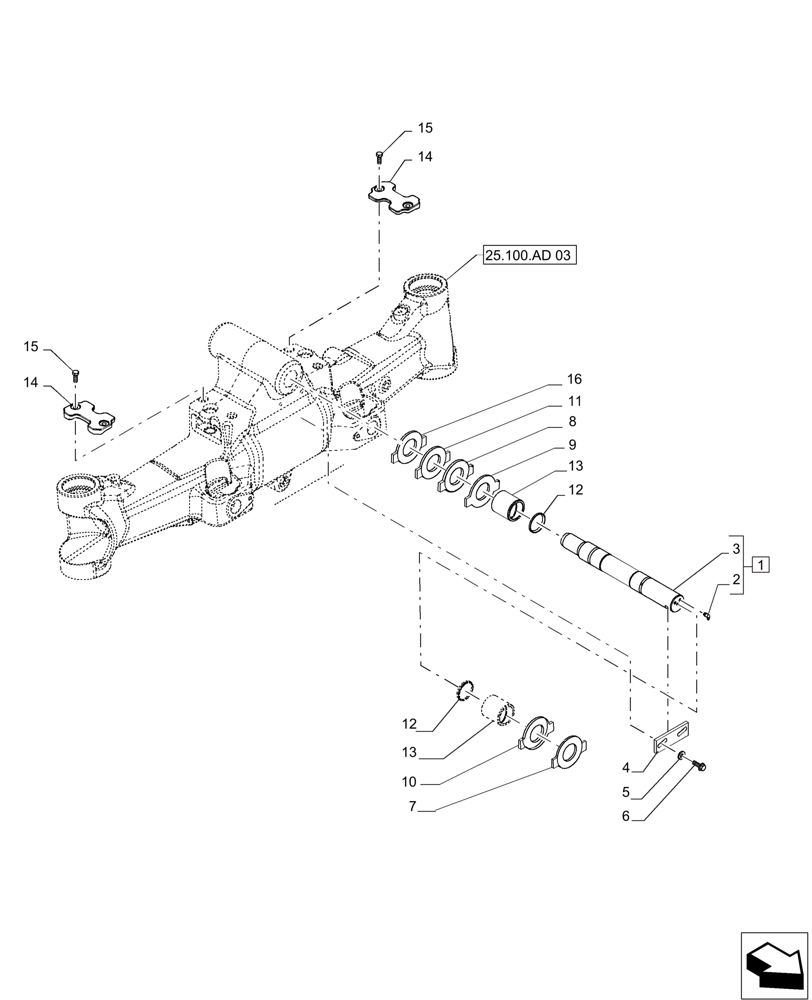

Запчасти Case IH MAGNUM 235 (25.100.AB[02]) - FRONT AXLE, MOUNTING, MFD - DANA (25) - FRONT AXLE SYSTEM

1

87400196

PIN ASSY.,60.26mm OD x 510mm L

Pivot, Frame Installation; Incl 2, 3

1шт.

2

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

3шт.

3

NSS

NOT SOLD SEPARAT

Pivot Pin, Incl in 1

1шт.

4

84409103

PLATE

Front Axle Pivot (90 mm)

1шт.

4

87677299

PLATE

Front Axle Pivot (130 mm)

1шт.

5

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

6

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

2шт.

7

87309060

THRUST WASHER,60.8mm ID x 112mm OD x 7.75mm Thk

5.75/7.75 mm

1шт.

8

87309061

THRUST WASHER,6.25mm Thk

6.25/8.25 mm

1шт.

9

87309062

THRUST WASHER,7mm Thk

7.00/9.00 mm

1шт.

10

87309063

THRUST WASHER,7.5mm Thk

7.50/9.50 mm

1шт.

11

87369711

THRUST WASHER,60.8mm ID x 112mm OD x 8mm Thk

8.00/10.00 mm

1шт.

12

87400202

SEAL

MFD Axle Pivot Pin

2шт.

13

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

MFD Axle Pivot Pin

2шт.

14

87648177

BLOCK

Oscillation Stop, Cl 5 Axle

2шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Cl 5 Axle

4шт.

16

87537622

SHIM,60mm ID x 112mm OD x 4.25mm Thk

1шт.
