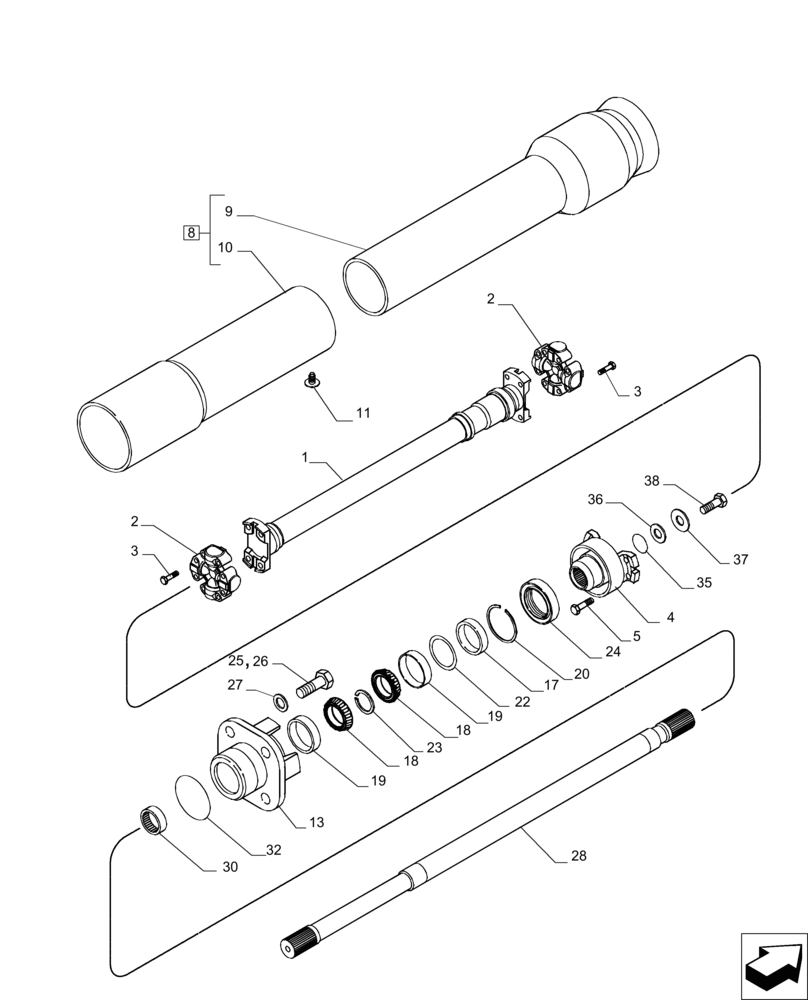

Запчасти Case IH MAGNUM 235 (23.314.AH[03]) - MFD AXLE - DRIVE SHAFT, STANDARD AND SUSPENDED AXLE (23) - FOUR WHEEL DRIVE SYSTEM
![Схема запчастей Case IH MAGNUM 235 - (23.314.AH[03]) - MFD AXLE - DRIVE SHAFT, STANDARD AND SUSPENDED AXLE (23) - FOUR WHEEL DRIVE SYSTEM](https://partsell.ru/storage/images/caseih/5323336.png)
№
Артикул
Название
Примечание
Количество
1
84154330
DRIVE SHAFT
1шт.
1
87699644
DRIVE SHAFT
1шт.
2
258854A2
U-JOINT SPIDER
2шт.
2
259076A2
U-JOINT SPIDER
2шт.
3
828-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
8шт.
4
87663540
YOKE
Class 6
1шт.
5
828-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
8шт.
8
84560272
SHIELD
Incl 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
Cover, Incl in 8
1шт.
10
NSS
NOT SOLD SEPARAT
Cover, Incl in 8
1шт.
13
199922A2
CAGE
1шт.
17
199923A1
SPACER,60.12mm ID x 73mm OD x 3.12mm L
1шт.
18
235519A1
ROLLER BEARING,41.28mm ID x 19.72mm W
2шт.
19
235521A1
BEARING, CUP,73.44mm OD x 14.63mm W
2шт.
20
199981A1
SNAP RING
1шт.
22
199929A1
SHIM,60.5mm ID x 73mm OD x 0.36mm Thk
1шт.
22
199928A1
SHIM,60.5mm ID x 73mm OD x 0.5mm Thk
1шт.
22
199927A1
SHIM,60.5mm ID x 73mm OD x 0.56mm Thk
1шт.
23
222732A1
SNAP RING
1шт.
25
628-20060
SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd
2шт.
26
828-20150
BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9
2шт.
27
896-12020
WASHER,22mm ID x 37mm OD x 4mm Thk
4шт.
28
87425393
SHAFT
1шт.
32
238-5043
O-RING,0.07" Thk x 3.489" ID, -43, Cl 5, 75 Duro
1шт.
35
238-5220
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
1шт.
36
337680A1
SHIM,17mm ID x 40mm OD x 0.2mm Thk
1шт.
36
222674A1
SHIM,17mm ID x 40mm OD x 0.36mm Thk
1шт.
36
222001A1
SHIM,17mm ID x 40mm OD x 0.56mm Thk
1шт.
36
222002A1
SHIM,17mm ID x 40mm OD x 0.64mm Thk
1шт.
37
221943A1
WASHER,17.5mm ID x 50mm OD x 6mm Thk
1шт.
38
628-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
1шт.
