(23.314.AH[02]) - MFD AXLE, CLASS V, DRIVESHAFT WITH POWERSHIFT TRANSMISSION

Запчасти Case IH MAGNUM 235 (23.314.AH[02]) - MFD AXLE, CLASS V, DRIVESHAFT WITH POWERSHIFT TRANSMISSION (23) - FOUR WHEEL DRIVE SYSTEM

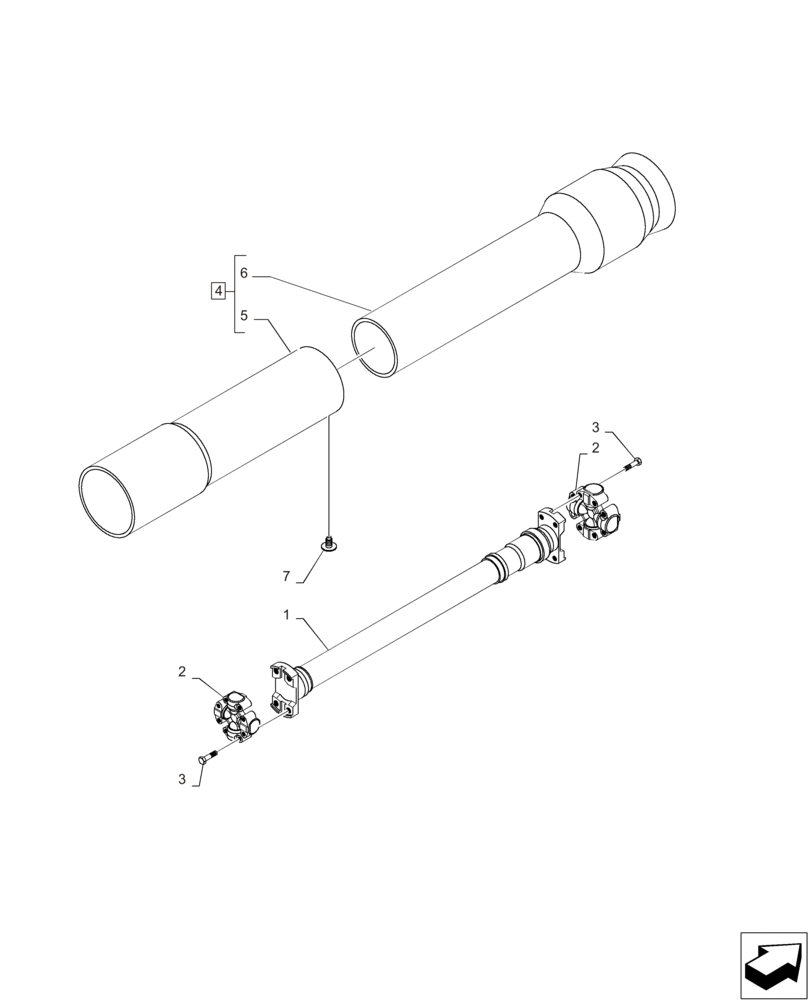

Схема запчастей Case IH MAGNUM 235 - (23.314.AH[02]) - MFD AXLE, CLASS V, DRIVESHAFT WITH POWERSHIFT TRANSMISSION (23) - FOUR WHEEL DRIVE SYSTEM
6
7
2
1
3
4
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87699644

DRIVE SHAFT

1шт.

2

259076A2

U-JOINT SPIDER

2шт.

3

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

16шт.

4

84560272

SHIELD

Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 4

1шт.

7

93199C1

FASTENER

2шт.
