Запчасти Case IH MAGNUM 235 (21.900.AA) - TRANSMISSION, PUMP DRIVE (21) - TRANSMISSION

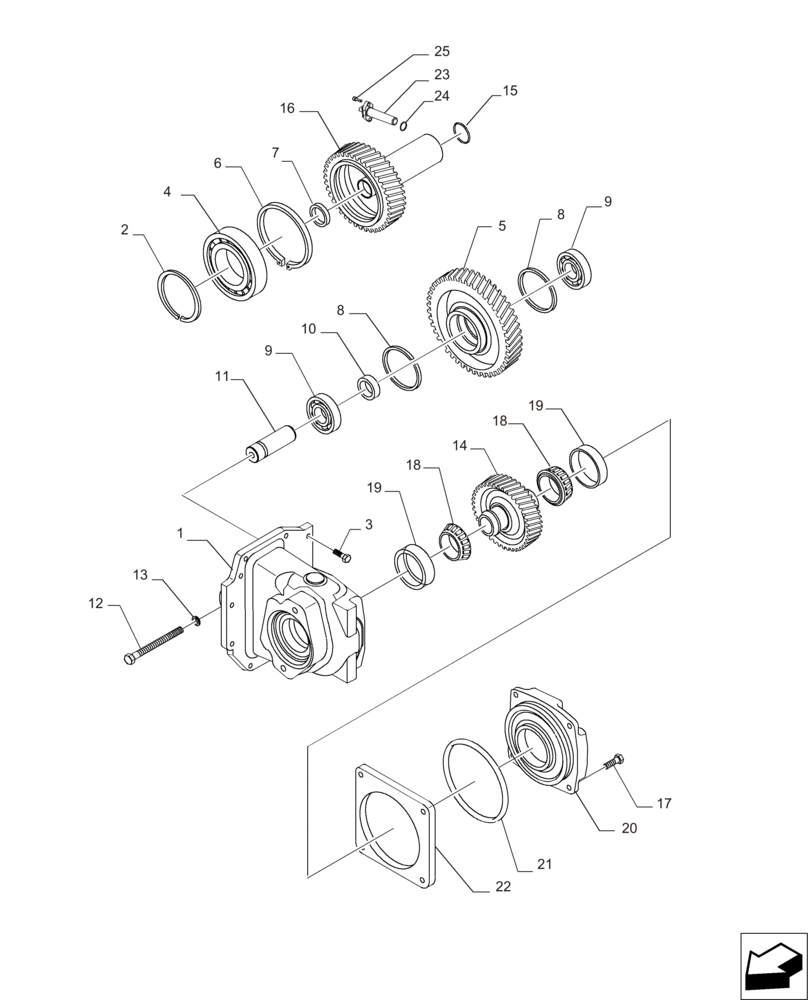

Схема запчастей Case IH MAGNUM 235 - (21.900.AA) - TRANSMISSION, PUMP DRIVE (21) - TRANSMISSION
9
19
12
23
14
15
9
8
6
19
17
24
21
3
18
1
18
7
16
5
22
2
10
8
11
20
25
4
13

Артикул

Название

Примечание

Количество

1

389550A1

HOUSING

1шт.

2

101-21433

SNAP RING,#433, 4.641", Int

1шт.

3

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

4

698032R1

BALL BEARING,60mm x 110mm x 22mm

1шт.

5

220199A1

GEAR

1шт.

6

100-11237

SNAP RING,#237, Ext

1шт.

7

1286023C1

RING,Locking, 43.31mm ID x 47.31mm OD x 2.87mm Thk

1шт.

8

472163R1

RING

2шт.

9

394326A1

BALL BEARING,35mm ID x 80mm OD x 21mm W

2шт.

10

93316C1

SPACER,35.36mm ID x 42.87mm OD x 12.3mm L

1шт.

11

134182A1

SHAFT

1шт.

12

813-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

13

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

14

404173A2

DRIVEN GEAR

45 Teeth

1шт.

14

84338602

GEAR

42 Teeth

1шт.

15

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

16

84264044

GEAR

1шт.

17

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

18

400987C1

BEARING ASSY,1.785" ID x 2.892" OD x 0.77, 0.62"

2шт.

19

400988C1

BEARING, CUP

2шт.

20

405664A2

CAGE

1шт.

21

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

22

120946C1

SHIM,159mm ID x 176mm OD x 0.08mm Thk

1шт.

22

120947C1

SHIM,159mm ID x 176mm OD x 0.1mm Thk

1шт.

22

120948C1

SHIM,159mm ID x 176mm OD x 0.13mm Thk

1шт.

22

120949C1

SHIM,159mm ID x 176mm OD x 0.3mm Thk

1шт.

22

149011C1

SHIM,159mm ID x 176mm OD x 0.76mm Thk

1шт.

23

84220812

SENSOR

1шт.

24

9825518

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

25

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 30
